air knife system

Even when the buyer has selected the air knife and blower specifications based on past experience, it is still recommended that Sonic reviews the application and agrees with the buyer’s selections. Getting a Sonic air knife system written quotation with the system performance guarantee assures the buyer gets properly sized equipment for the intended objective.

There are many factors in determining an effective and efficient air knife system, which include but are not limited to:

• Is the air knife system designed for a location’s temperature range and altitude?
• List the minimum to maximum ambient air temperature for the blower and the minimum to maximum discharge air knife temperature.
• Which accessory items have been quoted, and are there others that the customer may require?
• Are the construction materials for the air knife system compatible with the application?
• Is the air knife zone an open area, or is it enclosed for control and containment of the blow-off process?
• What are the installation electrical supply details and motor control specs?
• Will the customer need to supply cooling water for a hot air or cold air knife system?

Adding hot air is a common request, but knowing what air temperature is truly required for the air knife application is the first question. Only a small percentage of applications need heat to supplement high-velocity air knives.

For the vast majority of continuous sheet and web coating drying applications, where 150°F-275°F IR or UV heater panels have been the standard for flash drying of water-based coatings, Sonic Air Systems’ patented “heater-less” hot air blower air knife technology is a proven game changer. In virtually every coating drying application, Sonic’s drying zone is less than 12” long; the air knife temps are 50-75% lower than heater panels, the total blower drying energy is 50% less, and most installations are simpler and lower cost.

The use of in-line electric closed coil tube heaters, powered air knife systems, plus large 3-phase heater control panels is commonly used, particularly when hot air knife systems must melt or keep in a semi-molten state polymers and metalized coatings requiring 275F-1000°F temps. Sonic hot air knife technology cannot generate tube heater temperatures, but there are many other applications where the > 275°F temperatures are simply not necessary. Our hot air knives routinely produce equal or better drying results at much lower temperatures than many customers request, requiring up to 50% less energy with lower equipment and installation costs, while being an intrinsically safer system.

An in-line chilled water-to-air heat exchanger is best.

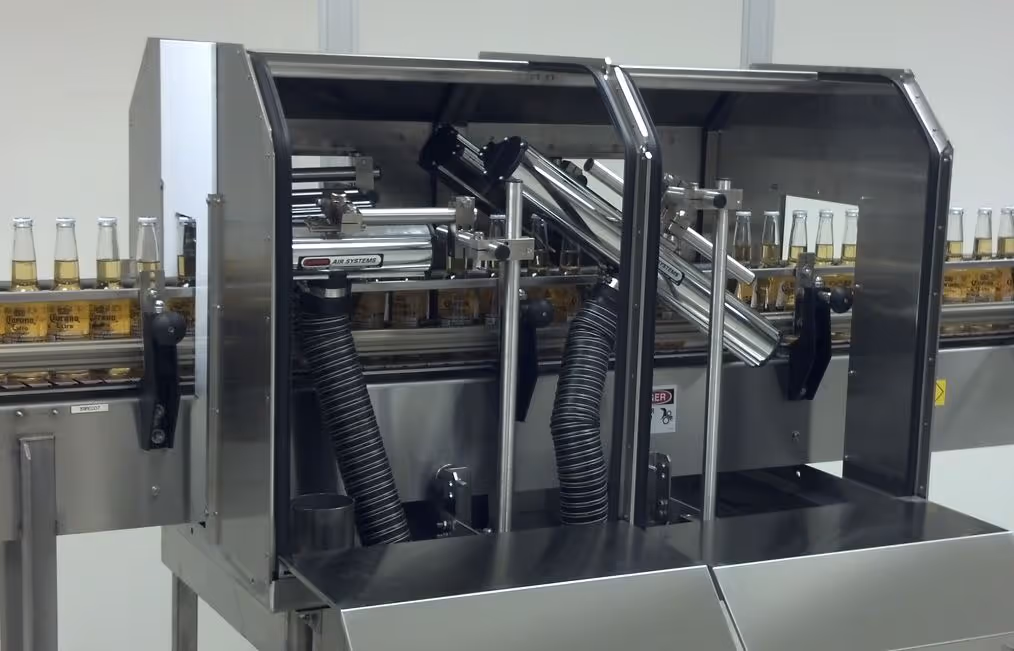

High-velocity air knives blowing any liquid off products as they pass by on a conveyor, particularly when the air knife zone is enclosed within a tunnel, requires equipment to prevent the aerosol from affecting the surrounding factory environment while capturing and/or reusing the blow-off liquid as well as preventing the liquid or spray from the air knife action from re-contaminating the product surfaces which are being blown off. Optimizing the air knife positioning together with the tunnel design allows for bulk water to be effectively contained and directed to the drain lines for discharge.

Controlling the lighter aerosol component of blow-off spray requires a proper air exhaust design to enhance blow-off effectiveness by optimizing the exhaust air volume and velocity.

An experienced air knife system designer can provide guidance to help confirm that the tunnel features and air balance are optimized for success.

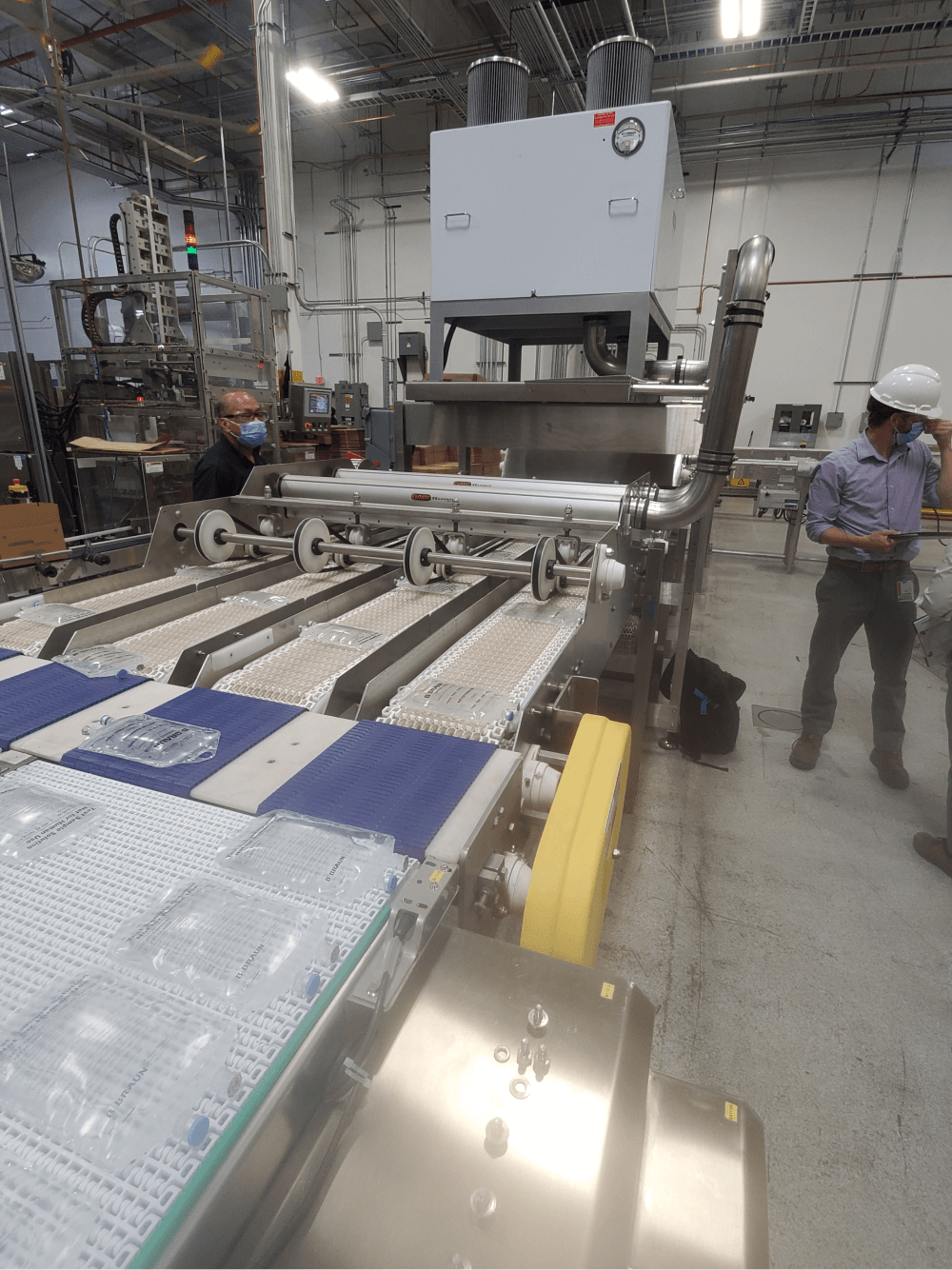

Air Knives with ionizing bars and a dust collector for particle extraction.

As a general rule, the optimal balance between air knife system efficiency and the cost of the piping and flex hose to deliver the blower air to the air knives is a design that has a minimum of 5% to a maximum of 10% air pressure loss through the piping and hose. Less than 5% losses mean that the piping/hose is larger in diameter and more expensive than needed. Greater than 10% pressure drop either causes less blow-off effectiveness or requires a larger horsepower and higher cost blower to make up for the small diameter piping or hose.

Although it is common to see piping or hose from the blower to air knives in the same diameter as the outlet size of the blower, there are many installations where the blower CFM and discharge air velocity are too high to allow for more than a few feet of piping or hose at the same diameter as the blower before the air friction losses exceed the 10% threshold.

In order to avoid costly plumbing redesigns, it is always best to have your air knife drying system provider assist with the piping and/or hose layout to optimize the sizing and cost of the air delivery system as well.

It is known in many industries that blower-power air knives typically operate at one or more orders of magnitude lower in decibel noise levels versus high-pressure compressed air knives and nozzles. Additionally, the audible hearing range of compressed air blowing out from knives and nozzles is at a much lower kHz frequency range than most blower air knives. The higher kHz signatures of the blower air knife frequency mean that it is much easier to suppress airborne decibels to an acceptable level.

The effectiveness of basic panels or shields to block most of the line-of-sight air knife sound, together with the strategic use of readily available closed-cell acoustical sound absorbing form, can generally achieve 10-15 dbA sound attenuation and even greater reductions with an air knife enclosure design optimized for each specific installation. There are certain high-velocity air impact applications where parts having air whistling through holes and over sharp part edges may need more help with those conditions, but there are generally sound reduction designs for most air knife installations.
