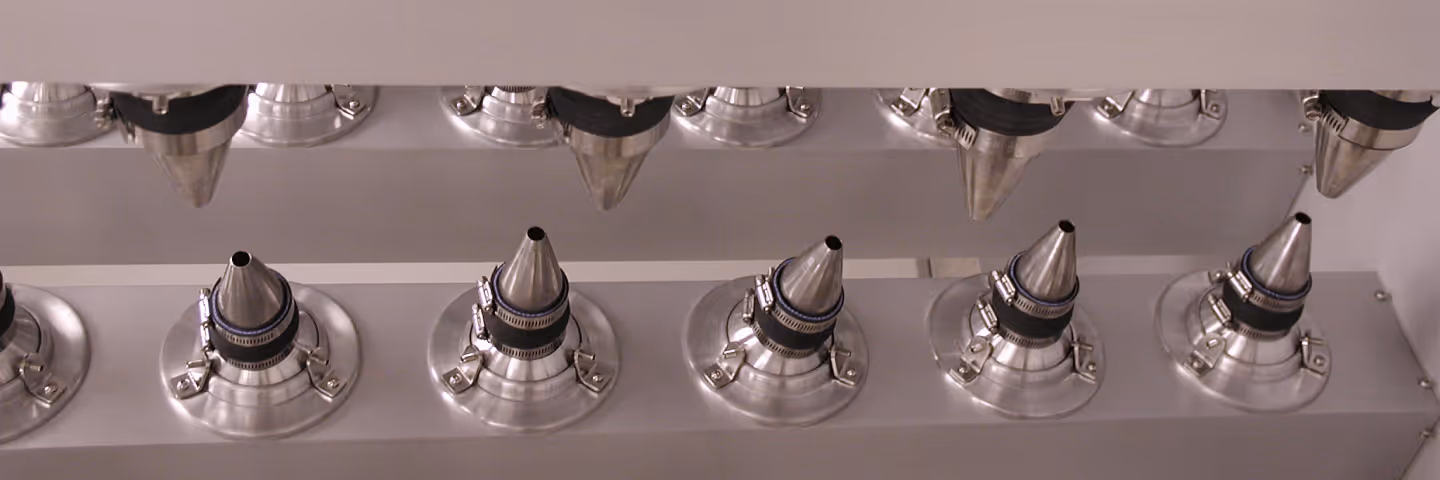

Reciprocating Air Knife (RAK) System
%20System.avif)
Smart and Energy-Efficient Paint Line Blow-Off Air Knife Systems
Efficient drying solutions capable of performing the tasks of multiple stationary air knives
Next-level drying technology with Sonic Air Systems' smart reciprocating air cannon dryer. Designed to overcome the limitations of a stationary air nozzle or air knife, our pneumatic reciprocating system excels in applications where parts require drying on monorail overhead conveyors to reduce the energy consumption of final oven drying prior to coating. With shorter drying times and impressive energy savings, this cutting-edge technology ensures 100% parts surface blow-off air contact.
Fill out our application guide today, and let our engineers develop a system for your specific needs.
Reciprocating Air Knife Systems for Monorail Conveyor Applications

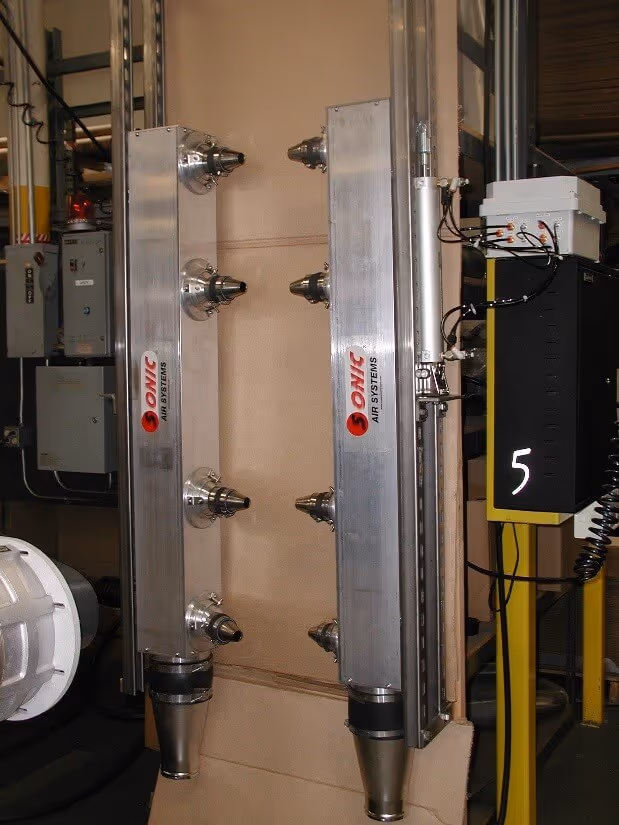

The Reciprocating Air Knife (RAK) System, developed by Sonic Air, is engineered to enhance drying and blow-off processes for monorail conveyor lines. This smart drying solution features air knives and nozzles that cycle up and down (reciprocate) as products are transported on overhead monorail conveyors, ensuring thorough and efficient drying or shot blast blow-off. Its adaptability makes it suitable for various sectors, including automotive, farm machinery, and other large profile parts.
Simplify your workflow and enhance output with targeted solutions.
- Reciprocating Motion: The system's air knives and nozzles traverse across the products, providing 100% parts surface coverage.
- Customizable Design: Sonic Air Systems offers tailored configurations to meet specific application requirements, accommodating various product shapes and sizes.
- Energy-Efficient Air Knife Systems: By focusing high-velocity air precisely where needed, the RAK System minimizes energy consumption compared to stationary air knife setups.
- Improved Drying Performance: The dynamic movement enhances the removal of moisture or debris, leading to faster processing times and improved product quality.
- Comprehensive Coverage: The reciprocating motion ensures uniform drying and cleaning by covering all sides of the product, even in hard-to-reach areas.
- Faster Processing: Enhanced moisture and debris removal results in quicker drying times, speeding up production and minimizing downtime.
- Reduced Maintenance: With fewer stationary components and a controlled air delivery system, the Reciprocating Air Knife minimizes wear and tear, which leads to lower maintenance costs.
How to Select the Right Industrial Diverter Valve
Determining the best valve for your system depends on balancing air volume, pressure, and material characteristics. When these factors align, you achieve smoother performance, higher efficiency, and long-term reliability. The ideal configuration not only maintains consistent airflow and minimizes pressure loss but also enhances energy efficiency across continuous production cycles.
Common Types of Diverter Valves
- Flap Type Diverter: Simple, cost-effective valve ideal for low- to medium-pressure systems handling powders, pellets, or airflows requiring gentle redirection.
- Plug (Rotor) Diverter: Designed for continuous-duty applications, offering smooth switching between lines with minimal leakage.
Slide or Slideflex Diverter: Provides fast, tight-sealing transitions for high-pressure or high-temperature processes where precision airflow management is essential.
Key Technical Considerations
When specifying an industrial air diverter valve, consider the following engineering factors to ensure long-term reliability:
- Material Compatibility: Choose materials suited to your process—aluminum for lightweight efficiency, stainless steel for hygienic or corrosive environments, or coated alloys for chemical resistance.
- Actuation & Automation: Sonic offers manual, pneumatic, or automated actuation to integrate with PLC or sensor-driven systems for instant airflow control.
Sealing & Maintenance: Valves are designed with precision-fit components and replaceable seals to maintain efficiency and reduce downtime during maintenance intervals.
Frequently Asked Questions
Yes. Sonic butterfly valves can operate in conjunction with a VFD for blower speed control; however, they can also function as the sole airflow control device. As a low-cost alternative to a VFD, the butterfly valve allows operators to manually fine-tune air velocity and pressure, setting the optimum airflow level during the initial system setup without relying on expensive electronic controls.
The Sonic Y-Verter™ is a mechanical alternative to Variable Frequency Drive motor controllers traditionally used in blower and air knife systems. It allows rapid, reliable airflow redirection between system branches without changing motor speed, reducing complexity and maintenance requirements compared to VFD-based systems.
A Y-Verter™ is particularly effective when using standard 3,600 RPM, 60 Hz motors where air control needs can be met through mechanical redirection rather than motor speed modulation. While certain high-speed blower motors (up to 20,000 RPM) may require VFDs with output frequencies up to 330 Hz, many air knife applications can achieve equal or better airflow management with the simpler, more durable Y-Verter™ system.
Yes. They can be integrated with most industrial blowers or pneumatic systems, and custom configurations are available for unique operating conditions.
