Optimize Quality Control with Sonic ION-AIR Air Rinse and Air Wash Systems
Eliminate foreign materials and static charge to ensure product integrity with Sonic’s blower-powered air rinse and air wash systems.
Meet the evolving demands of the food, beverage, medical devices, pharmaceutical, and high-tech industries with Sonic Air Systems. Sonic uses blower-powered systems that offer 75% less electricity than compressed air rinsing, resulting in an eco-friendly alternative to water rinsing and compressed air blow-off.

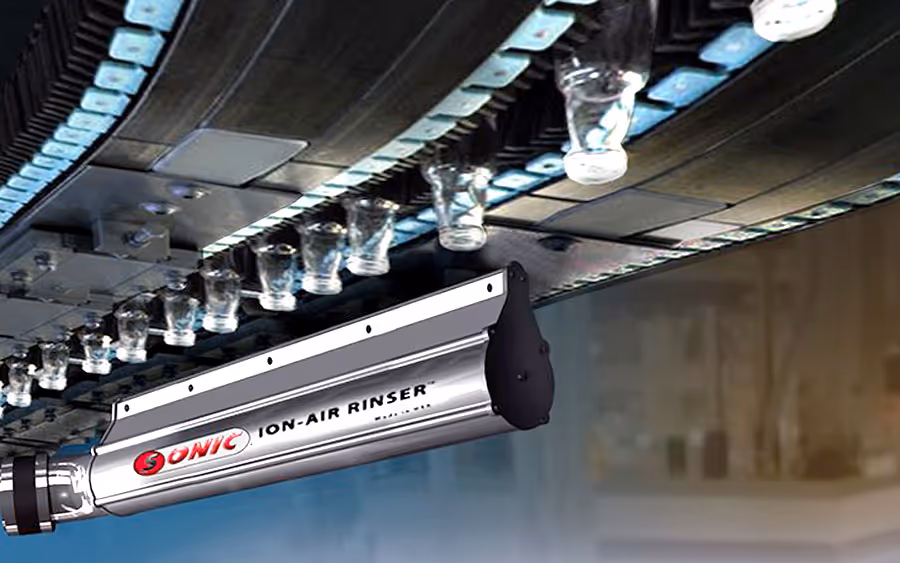

Achieve Cleaner Containers with Our Ionized Air Rinser System

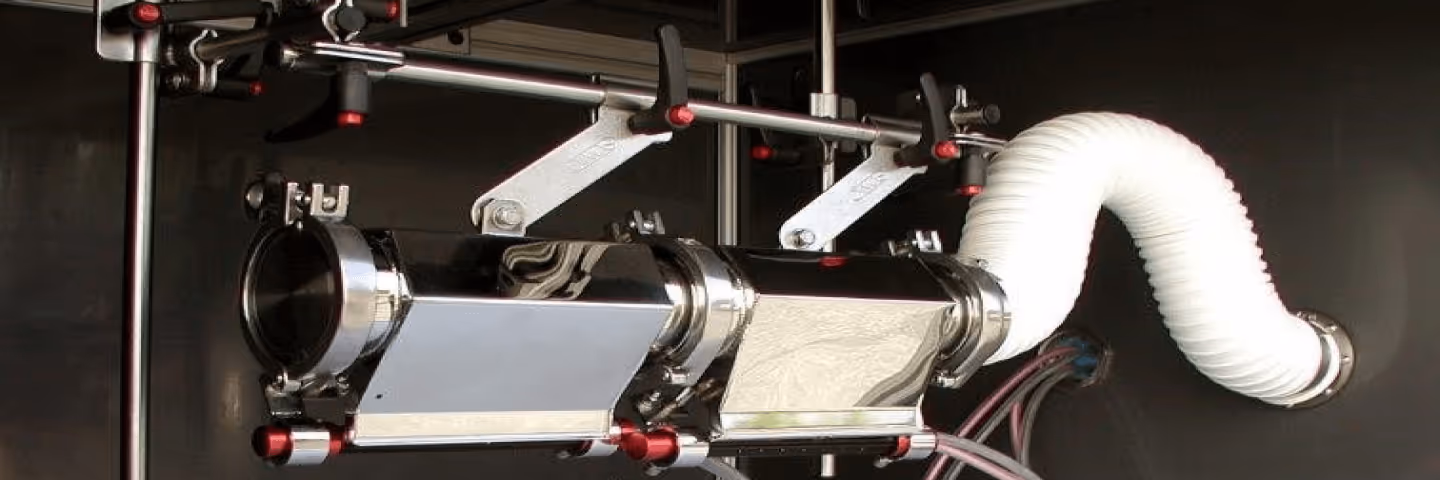

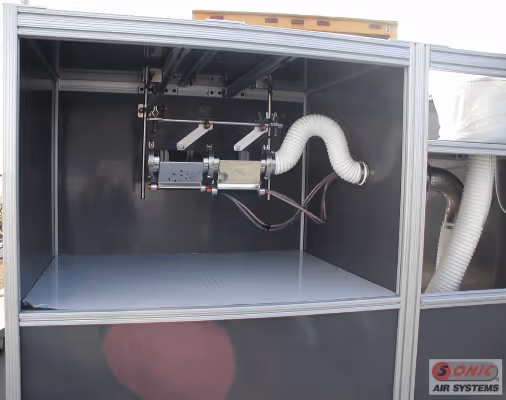

Sonic ION-AIR rinsing system options include a push-pull air wash turn-key system, HEPA filters, Sonic XE air knives with ionizing bars, and SMART Air Knife Tunnels, together with debris capture and exhaust blower with bag filter.

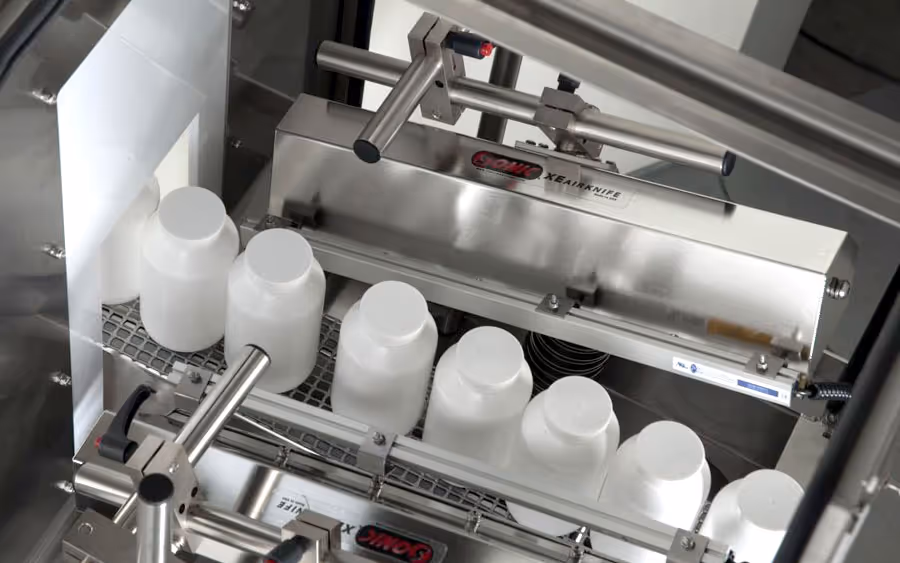

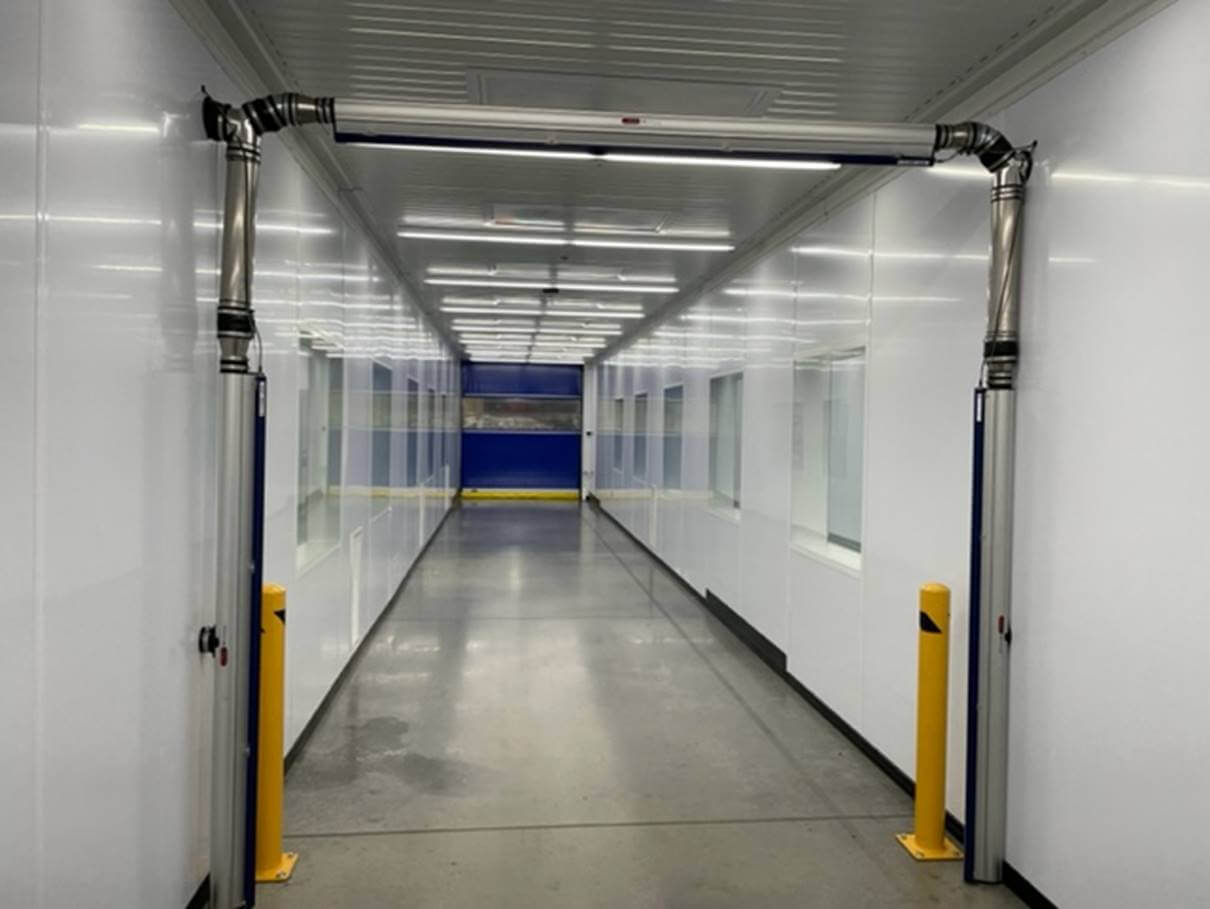

In addition to internal bottle and can air rinsers, Sonic's systems also support air washing, effectively blowing dust and powders from the outside of any products passing through our air rinsing zone. These systems also utilize Sonic’s SMART air knife tunnels to contain and collect any airborne contaminants.
Water conservation is a crucial consideration for many factories, and Sonic Air Systems develops eco-friendly static neutralizing solutions featuring an ionized air rinser and air wash system tailored to address the customer’s specific needs.
See How Our Systems Transform Your Cleaning Process

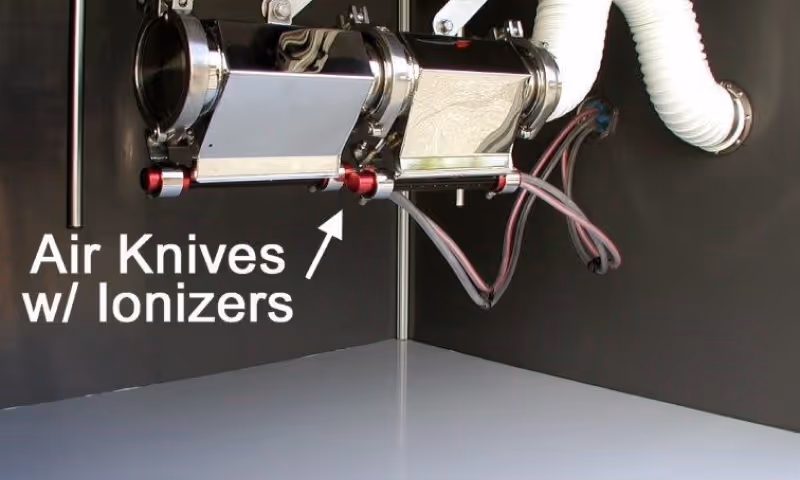

- Ionized Air Rinser Technology: Sonic’s systems use ionizing bars for static neutralizing to prevent dust and particles from clinging to products for a more effective cleaning process.
- SMART Air Knife Tunnels: Equipped with exhaust ports and collection filters, SMART Air Knife Tunnels capture and contain airborne contaminants. This keeps the production environment clean and compliant with safety standards.
- Water-Free Operation: Using high-velocity air instead of water, our ionized air rinser and air wash systems provide a sustainable cleaning solution.
- Enhanced Workplace Safety: SMART tunnels with exhaust systems capture airborne particles, preventing contamination. This ensures a safer working environment and helps businesses meet strict hygiene standards.
- Reduced Environmental Impact: The water-free cleaning process minimizes water waste and chemical usage. Companies can meet sustainability goals while maintaining a clean production line.
- Lower Operating Costs: With no water consumption and minimal maintenance needs, Sonic’s systems reduce operational expenses. Energy-efficient blowers further contribute to long-term savings.
How to Select the Right Industrial Diverter Valve
Determining the best valve for your system depends on balancing air volume, pressure, and material characteristics. When these factors align, you achieve smoother performance, higher efficiency, and long-term reliability. The ideal configuration not only maintains consistent airflow and minimizes pressure loss but also enhances energy efficiency across continuous production cycles.
Common Types of Diverter Valves
- Flap Type Diverter: Simple, cost-effective valve ideal for low- to medium-pressure systems handling powders, pellets, or airflows requiring gentle redirection.
- Plug (Rotor) Diverter: Designed for continuous-duty applications, offering smooth switching between lines with minimal leakage.
Slide or Slideflex Diverter: Provides fast, tight-sealing transitions for high-pressure or high-temperature processes where precision airflow management is essential.
Key Technical Considerations
When specifying an industrial air diverter valve, consider the following engineering factors to ensure long-term reliability:
- Material Compatibility: Choose materials suited to your process—aluminum for lightweight efficiency, stainless steel for hygienic or corrosive environments, or coated alloys for chemical resistance.
- Actuation & Automation: Sonic offers manual, pneumatic, or automated actuation to integrate with PLC or sensor-driven systems for instant airflow control.
Sealing & Maintenance: Valves are designed with precision-fit components and replaceable seals to maintain efficiency and reduce downtime during maintenance intervals.

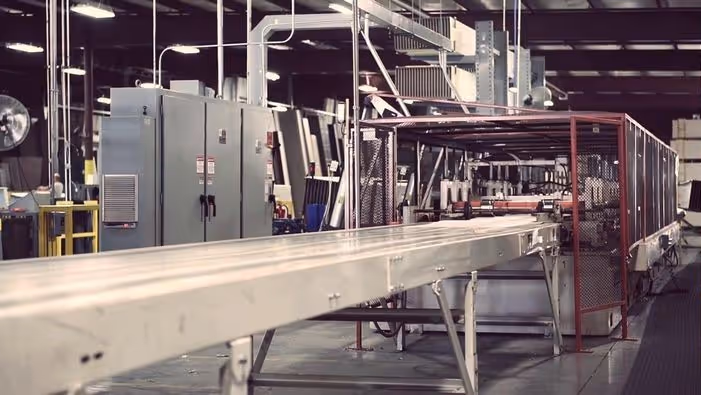

View Case Studies
Frequently Asked Questions
Yes. Sonic butterfly valves can operate in conjunction with a VFD for blower speed control; however, they can also function as the sole airflow control device. As a low-cost alternative to a VFD, the butterfly valve allows operators to manually fine-tune air velocity and pressure, setting the optimum airflow level during the initial system setup without relying on expensive electronic controls.
The Sonic Y-Verter™ is a mechanical alternative to Variable Frequency Drive motor controllers traditionally used in blower and air knife systems. It allows rapid, reliable airflow redirection between system branches without changing motor speed, reducing complexity and maintenance requirements compared to VFD-based systems.
A Y-Verter™ is particularly effective when using standard 3,600 RPM, 60 Hz motors where air control needs can be met through mechanical redirection rather than motor speed modulation. While certain high-speed blower motors (up to 20,000 RPM) may require VFDs with output frequencies up to 330 Hz, many air knife applications can achieve equal or better airflow management with the simpler, more durable Y-Verter™ system.
Yes. They can be integrated with most industrial blowers or pneumatic systems, and custom configurations are available for unique operating conditions.
Specification Sheets
Related Products

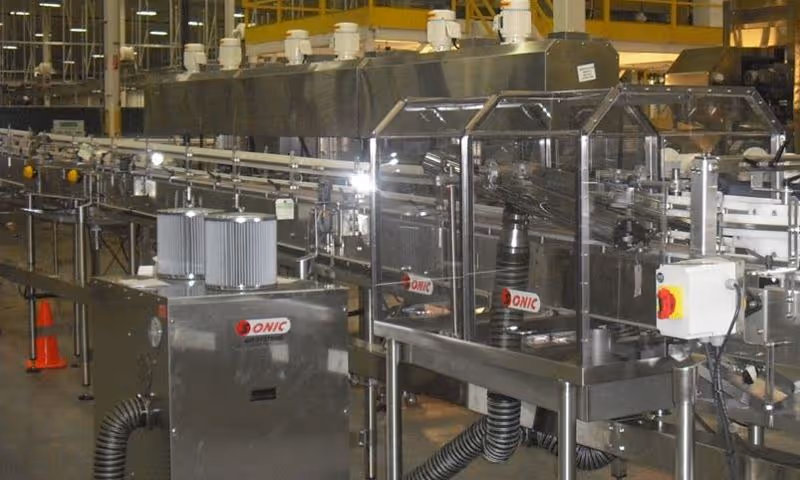

Air Knife Tunnel and Enclosure
Air Knife Tunnel and Enclosure
Sonic ION-AIR Air Rinse and Air Wash Systems
Sonic ION-AIR Air Rinse and Air Wash Systems
Reciprocating Air Knife (RAK) System
Reciprocating Air Knife (RAK) System
.avif)

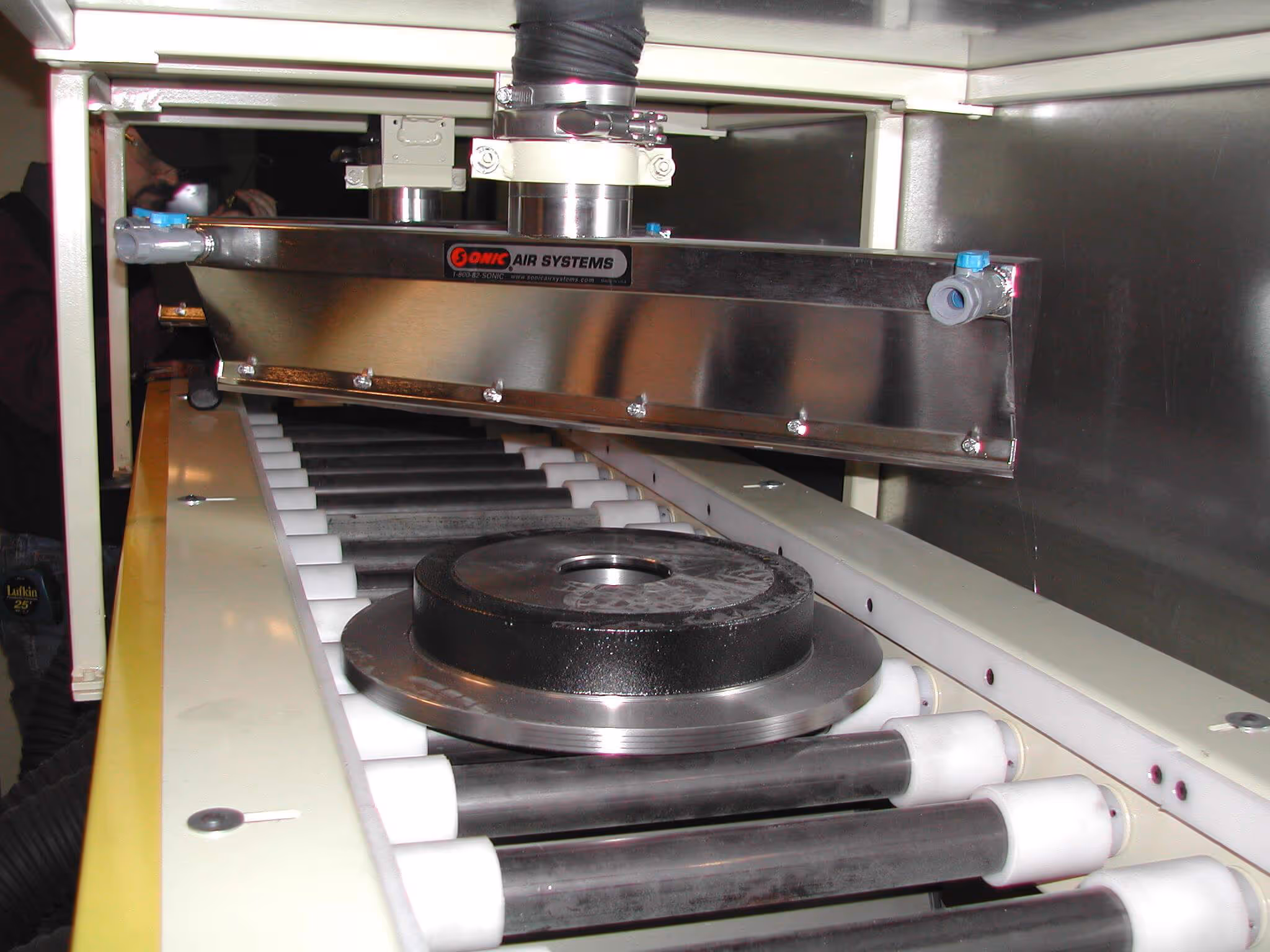

Cool Air Knife System
