Harness the Power of Sonic XE's Teardrop-Shaped Air Knife Design for Superior Performance
Game-changing teardrop-shaped air knife design for various applications

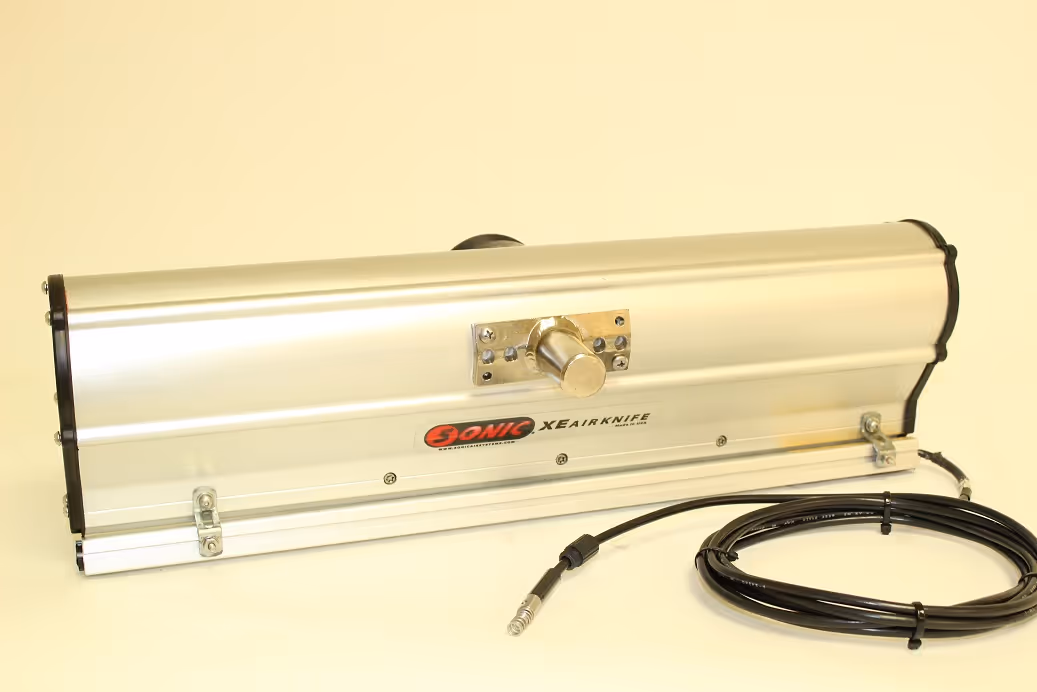

Developed in 1994, Sonic XE "eXtra Efficiency" Air Knife remains a groundbreaking engineering solution that revolutionized the industry with its teardrop-shaped design and high air efficiency. With a wide range of sizes, materials, and accessory options, Sonic offers the most comprehensive lineup of air knives and nozzles designed to meet the unique needs of any application. Our expert engineers will ensure the optimal pairing of our centrifugal blowers with the Sonic XE Air Knives, backed with a written "performance guarantee" for each system. And if Sonic doesn't have a design to meet the challenge, we'll engineer a new one!
How the Sonic XE Air Knife Blade Delivers Uniform and Powerful Airflow
The Sonic XE Air Knife stands out due to its advanced aerodynamic design and precision engineering, making it one of the most efficient air knife solutions on the market. Unlike a conventional flat-blade air knife, its teardrop-shaped cross-section minimizes turbulence and pressure loss, ensuring a consistent and uniform air stream across its entire length. This design results in an industry-leading 95% coefficient of discharge, maximizing kinetic energy transfer while reducing blower power consumption. The air knife's adjustable slot width and high-velocity airflow allow for customized performance tailored to specific industrial applications, whether for rapid drying, heating, precise cooling, debris removal, or static elimination. Moreover, the Sonic XE Air Knife seamlessly integrates with Sonic Air Systems’ high-efficiency centrifugal blowers, creating a complete air management system that delivers superior results with minimal energy input.
A highly efficient air knife engineering solution for industrial drying, cooling, and blow-off applications
- The Sonic XE is the worldwide air knife design standard (often imitated but never duplicated)
- 2” & 3” (51 & 76 mm) XE Air Knife profiles available in stock
- Precision air knife slot widths, adjustable from 0.010" to 0.250" (0.25 to 6.4 mm), produce laminar airflow across the entire air exit slot length
- Materials of construction: extruded aluminum with type III hard anodize high temp with Nylon inlet, end caps and Viton gaskets. Also available in 300 series stainless steel and powder-coated carbon steel
- Air inlets from one to four in any position, based on the total air knife volume required
- Many common lengths of welded 300 series stainless steel air knives with electropolished finish are in stock
- Flexline air nozzles added to air knives for additional blind spot blow-off
- Designed for Sonic blower pressures of 10" to 120" H₂0 (250 to 3048 mmH₂0) and 40,000 FPM (12,192 MPM) velocities
- Intrinsically safe for personnel by avoiding the air embolism hazard associated with some compressed air blow-off designs at 15 PSIG (103.4 kPa) and above
- Reduced power versus compressed air blow-off devices by up to 75%
- Greatly improve blower-powered air impact force compared with slotted pipes and other low-efficiency air knife designs
- Increased Production Efficiency: Delivers consistent, high-speed airflow, reducing drying and cooling time for improved production throughput.
- Significant Energy and Cost Savings: Cuts energy costs by up to 75% compared to traditional compressed air systems.
- Versatility Across Industries: Can be customized to meet specific drying, cooling, and blow-off needs.
- Improved Workplace Safety and Compliance: Operates with lower noise levels compared to compressed air alternatives and meets OSHA safety regulations
- Reduced Environmental Impact: Minimizes carbon footprint by lowering energy consumption.
How to Select the Right Industrial Diverter Valve
Determining the best valve for your system depends on balancing air volume, pressure, and material characteristics. When these factors align, you achieve smoother performance, higher efficiency, and long-term reliability. The ideal configuration not only maintains consistent airflow and minimizes pressure loss but also enhances energy efficiency across continuous production cycles.
Common Types of Diverter Valves
- Flap Type Diverter: Simple, cost-effective valve ideal for low- to medium-pressure systems handling powders, pellets, or airflows requiring gentle redirection.
- Plug (Rotor) Diverter: Designed for continuous-duty applications, offering smooth switching between lines with minimal leakage.
Slide or Slideflex Diverter: Provides fast, tight-sealing transitions for high-pressure or high-temperature processes where precision airflow management is essential.
Key Technical Considerations
When specifying an industrial air diverter valve, consider the following engineering factors to ensure long-term reliability:
- Material Compatibility: Choose materials suited to your process—aluminum for lightweight efficiency, stainless steel for hygienic or corrosive environments, or coated alloys for chemical resistance.
- Actuation & Automation: Sonic offers manual, pneumatic, or automated actuation to integrate with PLC or sensor-driven systems for instant airflow control.
Sealing & Maintenance: Valves are designed with precision-fit components and replaceable seals to maintain efficiency and reduce downtime during maintenance intervals.
View Case Studies
.avif)
Frequently Asked Questions
Yes. Sonic butterfly valves can operate in conjunction with a VFD for blower speed control; however, they can also function as the sole airflow control device. As a low-cost alternative to a VFD, the butterfly valve allows operators to manually fine-tune air velocity and pressure, setting the optimum airflow level during the initial system setup without relying on expensive electronic controls.
The Sonic Y-Verter™ is a mechanical alternative to Variable Frequency Drive motor controllers traditionally used in blower and air knife systems. It allows rapid, reliable airflow redirection between system branches without changing motor speed, reducing complexity and maintenance requirements compared to VFD-based systems.
A Y-Verter™ is particularly effective when using standard 3,600 RPM, 60 Hz motors where air control needs can be met through mechanical redirection rather than motor speed modulation. While certain high-speed blower motors (up to 20,000 RPM) may require VFDs with output frequencies up to 330 Hz, many air knife applications can achieve equal or better airflow management with the simpler, more durable Y-Verter™ system.
Yes. They can be integrated with most industrial blowers or pneumatic systems, and custom configurations are available for unique operating conditions.
