Air Knife and Blower Systems for Food, Nutraceutical, and Pharmaceutical Production Lines

Blower and air knife solutions for faster, cleaner, more sanitary production lines.

Food, nutraceutical, and pharmaceutical manufacturing share one requirement that sets them apart from general industrial production: the product must be safe for human consumption. That changes what “clean” means on the line, and it changes what a drying or blow-off system has to deliver. Sonic Air Systems designs and builds blower-powered air knife systems for food processors, nutraceutical manufacturers, and pharmaceutical producers who need moisture removal, debris displacement, or static elimination performed to sanitary standards, without slowing the conveyor down.

Our systems replace compressed air, which carries moisture and oil straight from the compressor and into the piping system. Sonic Air Systems is designed for food contact applications, delivering clean, moisture-free and oil-free air through sanitary air knives built to 3-A cleanability standards. Where a mixing tank, tote, or blender needs to be dry before the next batch goes in, our patented DRY-IN-PLACE system cuts drying time from hours to minutes. Where static charge or airborne dust threatens contamination, our ionizing air knives and food-grade Sonic HEPA filters handle both in a single pass.

Key Takeaways

• Sonic's Sanitary Air Knives are built to 3-A Cleanability Standards, with a quick-disconnect design for washdown environments.
• The patented DRY-IN-PLACE Tank Dryer System dries CIP tanks, blenders, mixers, totes, and piping in under 30 minutes, using air up to 160°F generated from the blower's own heat of compression, no external heater required.
• Inline HEPA filtration reaches 99.97% efficiency at 0.3 microns, with ULPA filtration available for applications that require it.
• Ionizing air knives neutralize static charge on plastics, films, cans, bottles and pouches before blow-off removes the released debris.
• A Sonic 70 blower with a 10 HP motor performs work equivalent to a 40 HP compressed air compressor in comparable drying applications.
• Air path components for food-grade builds use 300 Series stainless steel, food-grade materials, and 3-A compliant fittings throughout.

Sonic's Core Capabilities for Food, Nutra, and Pharma Lines

Sanitary Air Knife Drying and Blow-Off

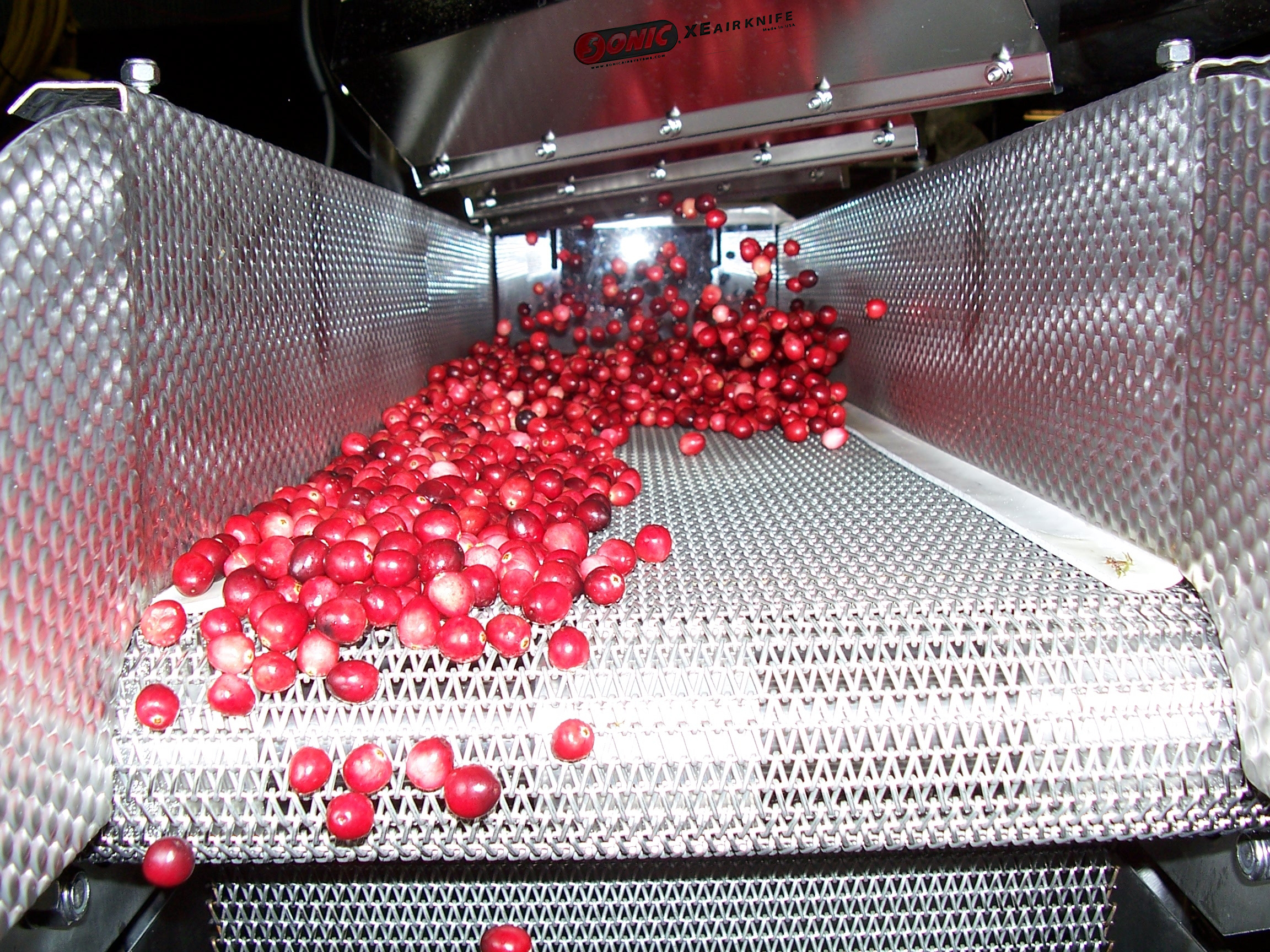

Sonic's Sanitary Air Knives are built to 3-A Cleanability Standards, with a quick-disconnect design that lets production staff pull a knife for cleaning. Constructed in 300 Series stainless steel, they hold up to washdown, humidity, and repeated CIP cycles. Sonic deploys sanitary knives for all types of direct food or food contact surface blow-off. Sonic aluminum XE Knives and standard stainless steel XE Air Knives suit most other non-food applications. The same sanitary platform anchors our approach to canning and bottling lines, covered in more depth on our Beverage applications page.

CIP Tank, Tote, Mixer, and Blender Drying with DRY-IN-PLACE

After a clean-in-place wash, a mixing tank, blender, or stainless steel IBC tote has to be completely dry before the next batch of ingredients goes in, and every hour it sits wet is an hour the line isn't running. Sonic's patented DRY-IN-PLACE Tank Dryer System solves this with a heaterless design that produces up to 160°F outlet air using the blower's own heat of compression, no external heating element required. Instead of an eight-hour air dry cycle, most tanks, blenders, totes, and piping come out dry in under 30 minutes.

Ionized Air Rinsing, Static Elimination, and HEPA Filtration

Sonic's ionizing air knives eliminate shipping and handling dust prior to packaging, an important step since plastic films, cans, bottles, and pouches build up a static charge during forming and filling that pulls dust and fiber back onto the surface even after a standard blow-off. The ionizing bar neutralizes that charge first, so the air knife removes the released debris in the same pass, and where the application calls for it, an inline HEPA filter brings air cleanliness to 99.97% at 0.3 microns before it ever touches the product. A dedicated Food Grade HEPA Filter is available for direct product contact applications, and ULPA filtration is available where the application requires a higher standard. These same principles, ionization paired with HEPA filtration, are also central to the clean room systems detailed on our Medical Devices page.

How a Sonic Food, Nutra, and Pharma System Is Configured

A Sonic system for this space is built around a centrifugal blower, one or more air knives sized to the product geometries and line speed, and depending on the application, an ionizing bar, an inline HEPA filter, and stainless steel piping rated for washdown duty.

Blower-powered air carries no moisture or oil carryover and needs no pressure regulation, which matters on a line where compressed air pressure drops every time another piece of equipment on the same header kicks on. The heat of compression built into every Sonic blower also does useful work here. Instead of adding a separate heater to speed drying, the Variable Temperature (VT) design uses that heat rise to deliver air up to 275°F at the knife discharge for Hot Air Blower applications, while the DRY-IN-PLACE system uses the same principle to reach 160°F for tank and tote drying, all without an external heating method and at a fraction of the power draw of a conventional heated air system.

Where sanitary construction is required, air knives, piping, sleeves, and clamps are specified in food-grade materials, stainless steel, and 3-A compliant fittings, so the full air path from blower to product meets washdown and cleanability requirements.

Verified Applications

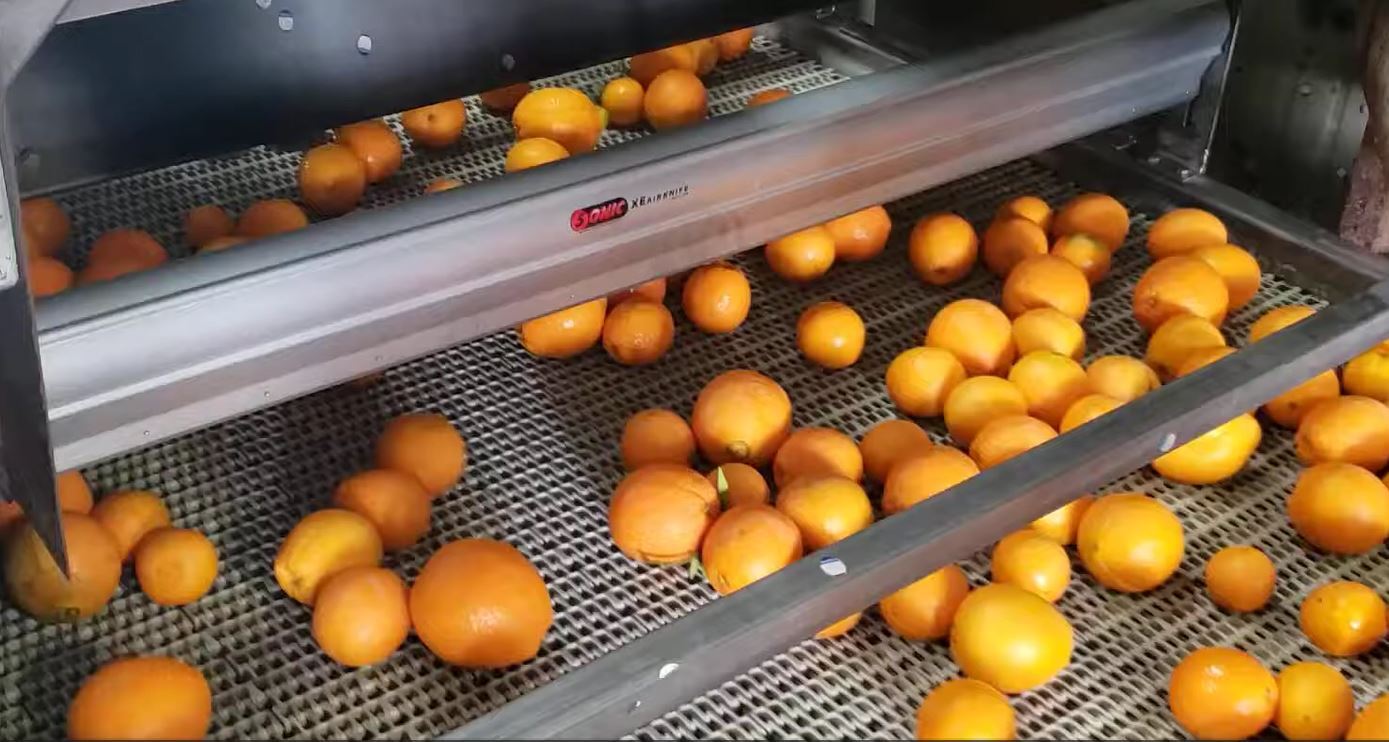

Wax Application on Wet Citrus: Porterville Citrus, Tulare County, CA

Porterville Citrus, a Sunkist packer that ships nearly half its crop into export markets, had a problem downstream of its wash line. Citrus came off the wash and dry cycle with enough residual water on the surface that wax would not apply evenly, a problem for an exporter whose fruit needs a uniform coat to protect freshness and appearance over a long shipping route. Sonic engineered a blower air knife system to remove the excess water before the fruit reached the waxing stage. “Working fantastic. We no longer have a problem with wet fruit,” the customer reported, and the fruit now reaches export markets fully dry and properly waxed.

Cutting CIP Drying Time for Trail Mix Production: New Century Snacks

New Century Snacks produces more than 100 flavored nut blends and 300 trail mix varieties, including private-label runs for retail customers. Between batches, the stainless steel totes used to mix candies, dried fruit, and nuts have to be washed to prevent cross-contamination, and air drying the 64 cubic foot totes was taking more than eight hours, a bottleneck holding back the entire production schedule. Sonic's patented DRY-IN-PLACE Tank Dryer System, using the same heaterless hot air blower technology that reaches 160°F outlet temperature, brought that drying time down to under 30 minutes. New Century Snacks has since built out a dedicated drying room running multiple DRY-IN-PLACE systems side by side.

Reducing Raw Material Waste in Personal Care and Nutraceutical Blending

A global manufacturer of healthcare, personal care, and veterinary products mixes fillers, humectants, flavoring, and preservatives into a liquid base inside a large stainless steel blender to form a thick paste raw material. Every product change means a CIP wash of the blender and its connecting pipe, and the paste left behind after mixing was being scrapped as waste rather than recovered. Sonic's patented Hot Air Blower Tank Dryer System injects high-volume heated air into the blender and pipe ahead of the CIP wash, loosening the remaining paste so it can be flushed out and folded into the next batch of the same blend, instead of being thrown away. The same system then dries the tank and pipe after the wash, all under 80 dBA.

Why Food, Nutra, and Pharma Manufacturers Move Away from Compressed Air

Central compressed air is already in most plants, so it becomes the default choice for blow-off and drying, and in food, nutra, and pharma environments that default causes real problems. Compressed air carries moisture and oil from the compressor onto the piping system, runs at a pressure far higher than the work actually requires, and drops off every time another piece of equipment pulls from the same header. Nozzle-based blow-off also concentrates air into a narrow stream, leaving gaps in coverage on a curved can, a gusseted pouch, or a contoured tray.

A dedicated Sonic blower-powered air knife system delivers a laminar flow, uniform curtain of oil-free, moisture-free air across the full product width, at a fraction of the energy cost of an equivalent compressed air setup. A Sonic 70 with a 10 HP motor does the work of a 40 HP compressor in comparable drying applications. For a plant already managing pressure drop across multiple lines, moving food, nutra, or pharma drying onto its own dedicated blower takes that load off the compressed air system entirely.

Air Knife System Components for Food, Nutra, and Pharma Applications

Air knives: Sanitary Air Knife (3-A compliant, quick-disconnect); E-Z Clean Air Knife; XE Stainless Steel Air Knife; Static Control Air Knife with ionizing bar for de-ionizing and static neutralization

Filtration: Food Grade HEPA Filter; standard inline HEPA filter (99.97% at 0.3 micron); ULPA inline filter (99.99% at 0.12 micron)

Blower models: Sonic 70 through Sonic 300, 3 HP to 50 HP depending on system scale; VT (Variable Temperature) design for heated air up to 275°F without an external heater, used in Hot Air Blower applications; DRY-IN-PLACE Tank Dryer System, 10 HP to 25 HP, capped at 160°F

System accessories: Food-grade flex hose and sleeve and clamps; stainless steel piping and fittings rated for washdown; pressure monitors and Predictive Maintenance Monitor (PMM)

Get a Food, Nutra, or Pharma System Engineered for Your Line

Every production line in this space has its own constraints: product geometry, line speed, sanitary classification, and material compatibility. Sonic's engineering team works from your application to specify a system built for it, not a generic one adapted to fit.
