A Sonic air knife and air nozzle system removed over 95% of rinse water from complex automotive parts prior to painting, cutting one manufacturer's pre-paint oven heating capacity by more than 50% and reducing paint rejects.
Air Knife Systems for Automotive Manufacturing
Automotive
Removing water, debris, and static from parts at every stage, from machining to the paint line
Interested in learning more?
Tell us about your process and we'll follow up with a recommendation.
The automotive line brief
Energy-Efficient Air Knife Systems for Automotive Manufacturing
Removing water, debris, and static from parts at every stage, from machining to the paint line
The drying challenge
Automotive manufacturing runs on water and compressed air in equal measure: machining coolant, plating rinses, DI water rinses ahead of paint, and pressurized cleaning between stations. Every one of those steps leaves something behind that the next process can't tolerate, whether that's rinse water on a bumper about to enter a paint tunnel, metallic swarf inside an engine block cavity, or static charge on a lens waiting for a coating. Compressed air blow-off and extended oven dwell time have long covered that gap, at real cost in energy, floor space, and reject rate.
Sonic Air Systems engineers blower-powered air knife and air nozzle systems built for automotive production lines specifically, removing water-based liquids from machining, cleaning, cooling, plating, and painting processes. Beyond drying, Sonic systems provide high-velocity air for static control, pressurized air cooling, vacuum for exhaust emissions sampling systems, and high-volume flow bench testing of engine components, covering a wide variety of the air-moving needs a modern automotive line runs into.
- rinse water removed before paint
- 95%+
- air velocity for deep-cavity blow-off
- 178 m/s
- fixed-position wheel drying
- 6 FPM
Line requirements
Key Takeaways
One automotive line can demand drying, debris removal, static control, and cooling at different handoffs. The airflow system has to keep pace with all of them.
Key takeaway
Engine block and component blow-off systems achieve air flows exceeding 178 m/sec (35,000 FPM) to clear machining swarf and debris from deep cavities and holes.
Key takeaway
Fixed-position air knife systems can dry multiple wheel or part sizes without operator adjustment, at line speeds as low as 6 FPM.
Key takeaway
Systems extend past drying to static control on painted components and light lenses, and to vacuum and flow bench testing for engine components.
Key takeaway
A single blower replaces the multiple compressed air headers previously used for the same job, cutting energy draw and floor space.
Next step
Talk through your line.
Share the process, line speed, and current air source. We will help map the next step.
Request A Quote
Application map
Sonic Provides Air Knife Drying Systems For:
- Engine blocks
- Transmission housing
- Engine components
- Clutch plates
- Engine assemblies
- Tires
- Wheels
- Painted components
- Car bodies
- Batteries
- Chassis items
- Headlamps
System logic
Engineered for Every Stage of the Automotive Line

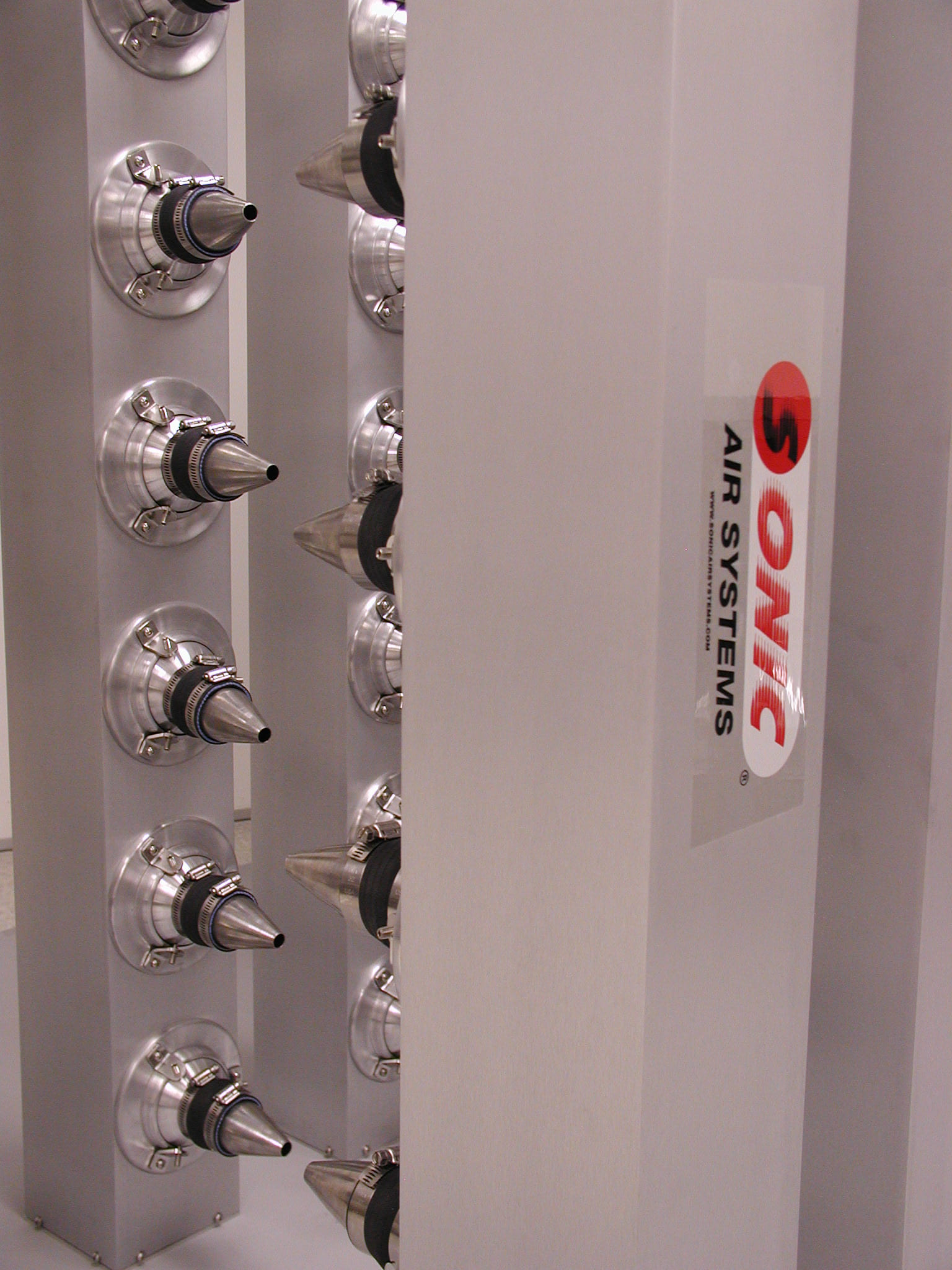

Ahead of a paint tunnel, air knife systems and air nozzle manifolds work together to reach the through holes, crevices, and blind spots that a single air knife can't cover on a molded or cast part, using swivel nozzles positioned to the part geometry rather than a fixed spray pattern. Deeper in the line, engine block and component drying calls for a different kind of force entirely: air velocity exceeding 178 m/sec (35,000 FPM) delivered through an enclosed module, strong enough to blast swarf and cutting debris out of deep cavities and blind holes rather than just clearing the surface.
Where static charge is the problem rather than moisture, Ion-Air Knife static neutralizing systems combine the same high-velocity airflow with an ionizing bar to release surface tension and neutralize charge on painted components and lenses before coating. Every configuration runs off a Sonic centrifugal blower, so a single unit replaces the multiple compressed air headers a line would otherwise need for drying, blow-off, and static control separately.
Production proof
Verified Applications
Verified application
95% Rinse Water Removal Cuts Paint Rejects and Oven Load

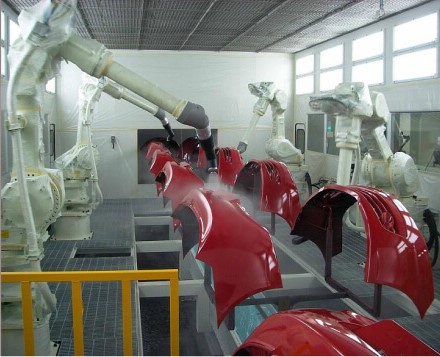

A major automotive component manufacturer was struggling to get complex bumper parts fully dry after a DI water rinse and before the paint tunnel, a problem made harder by the parts' through holes, crevices, and blind holes. Sonic engineered a system combining XE air knives, swivel air nozzles, and custom manifolds to reach every surface of the part, removing over 95% of the rinse water before the pre-paint heating tunnel, which also cut paint rejects and improved overall line efficiency. Full details are in Sonic's published case study, Sonic Air's Automotive Drying Solutions Improve Paint Line Performance.
Verified application

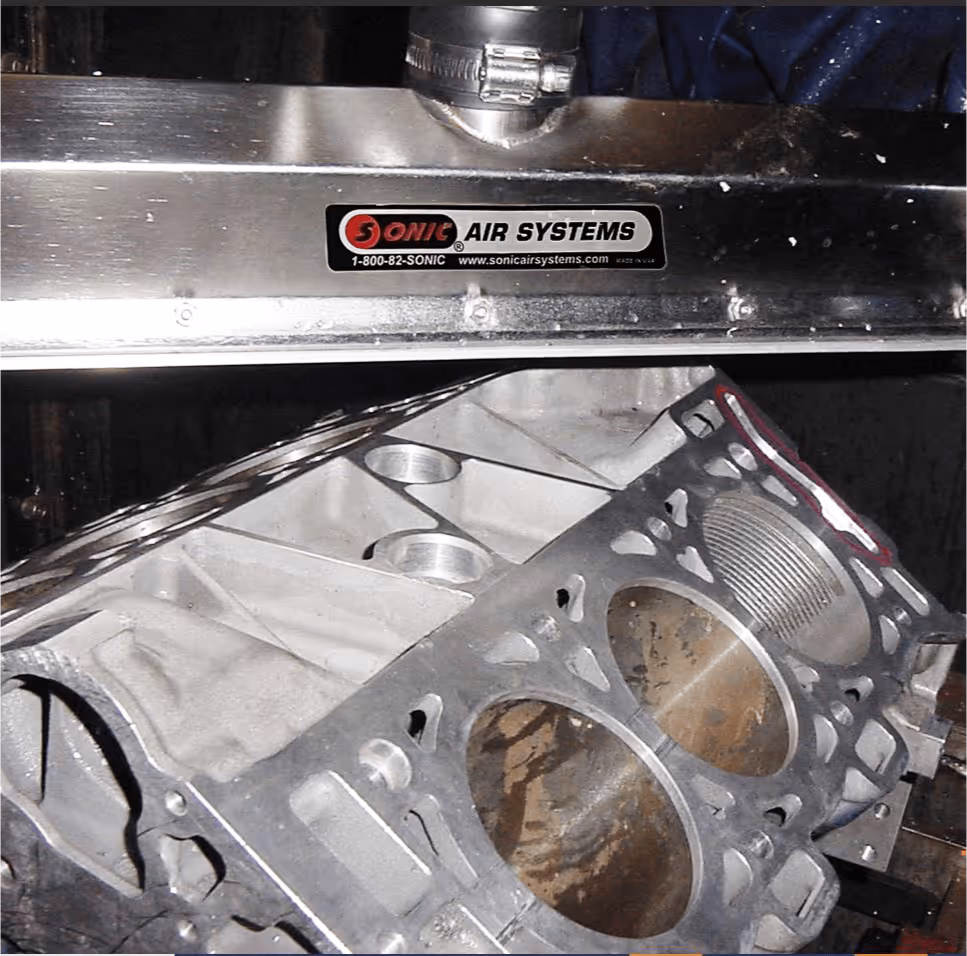

Engine Block Machining Debris Removal: Ford and General Motors
Two of the biggest names in engine manufacturing solved the same problem with the same approach. At Ford's Lima, Ohio engine line, machining and grinding left metallic particles and abrasive fragments on engine components that had to be cleared before further processing, including from deep cavities and holes; a set of 20 HP blower and air knife units delivering high-velocity air handled it, and later an automatic belt tensioner upgrade reduced the maintenance load further. On a separate General Motors aluminum engine block line, Durr Automation needed to replace older, oversized turbo blowers that had grown too heavy, loud, and maintenance-intensive for GM's standards. Three Sonic blowers with multiple stainless steel air knives, delivered through an enclosed cabinet running under 85 dBA at three feet, now index blocks through the drying zone in 15 to 30 second cycles as part of a fully automated machining and cleaning system.
Verified application

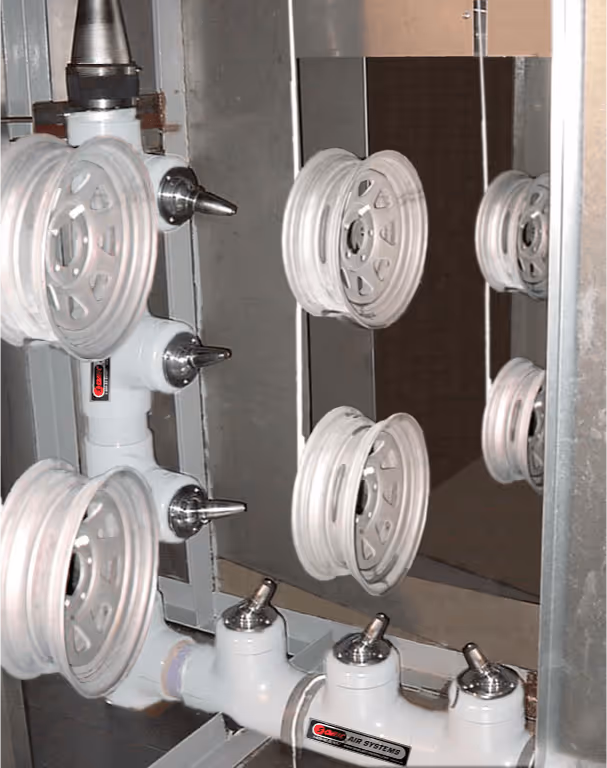

Fixed-Position Wheel Drying Across Multiple Sizes: Carlisle Tire and Wheel
Carlisle Tire and Wheel needed to remove DI water from small construction wheels traveling at just 6 FPM on an overhead conveyor, prior to painting, without the ability to manually adjust air knife position for each wheel size that came down the line. Sonic tested Carlisle's actual wheels and racks to confirm a fixed-position configuration could work across their size range, then sized four 60-inch air knives, slightly angled to plow water from top to bottom, powered by a single 50 HP blower producing air knife exit velocities over 28,000 FPM (318 mph). The velocity alone was enough to break surface tension and atomize the water on contact, delivering a dry wheel without any per-size adjustment.
Case Studies For Industry-Related Practical Applications
Case studies01 / 05
Have an Automotive Line to Talk Through?
Tell us the part, the process stage (machining, plating, painting, assembly), and the line speed, and we'll help size the right system.
