Industrial Hot Air Blower (Patented)
.avif)

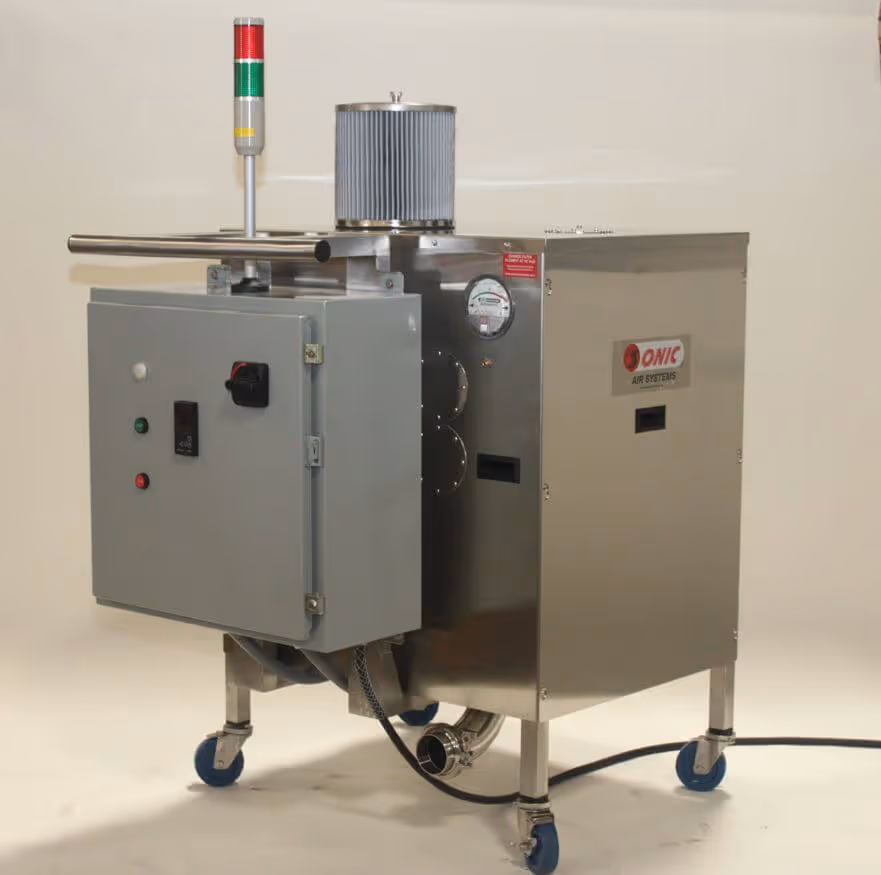

Energy-Efficient, Heater-less Industrial Hot Air Blower
Sonic Air Systems’ patented technology produces air at 125°F to 275°F (51°C to 135°C) without the need for an external heating source with Sonic FT/VT (Heater Less) Hot Air Blowers. Reduce energy costs by up to 75% by eliminating the need for an external heat source, with six models available from 7.5 to 50 HP (7.5 to 37 kW) to accommodate your needs.
Engineered Hot Air Blower Equipment for Industrial Applications
Sonic Air’s patented industrial hot air blower equipment delivers warm, high-velocity air for demanding production environments without external heaters, open flames, or electric coils. By using the blower’s inherent heat generation, these systems provide a controlled temperature rise that supports drying, curing, and heating cycles across modern manufacturing lines while avoiding the energy and maintenance burdens of traditional dryer rooms or batch-type dryers.
Designed for targeted performance, each system maintains the right balance of airflow, moisture control, and temperature for applications in coating, food and beverage rinsing, packaging, plastics, and chemical processing. Whether accelerating a curing cycle, preparing surfaces for downstream operations, or removing residual water at high line speeds, Sonic’s heater-less hot air blower dryers deliver consistent, reliable results for continuous industrial production.
Advantages of Sonic Air’s Patented Hot Blower Systems
Engineered Efficiency and Consistent Performance
Sonic’s heater-less technology eliminates the energy burden of traditional heat sources while maintaining stable, predictable temperature output in the 125°F to 275°F (51°C to 135°C) range. With airflow capacities from 100 to 2,000 CFM and pressure capabilities of 1–4 PSIG, the system delivers the performance required for industrial drying methods while reducing long-term operating costs.
Because there are no heating elements, burners, or coils, the system reaches full operating conditions quickly and avoids the maintenance issues associated with thermal coils or gas-fired equipment. Plants gain a more efficient air system with fewer failure points, lower energy usage, and greater uptime.
Precision Control for Every Stage of the Manufacturing Process
Industrial production environments demand precise control of airflow, moisture conditions, and temperature to protect product quality. Sonic’s hot air blower equipment is engineered to integrate seamlessly into a wide range of projects, from compact packaging lines to high-speed coating or drying processes.
The system delivers controlled air flow management that keeps moisture levels within specification and ensures the right heating or drying effect for each product type. Whether the application involves surface preparation, drying before labeling, pre-heating substrates, or accelerating a curing cycle, Sonic’s engineered blower solutions provide the precision required for modern manufacturing.
Proven Reliability for Continuous Operation
Designed for 24/7 industrial duty, Sonic’s industrial hot air blower systems are built with durable components, corrosion-resistant materials, and a patented blower design that provides long service life under demanding moisture and temperature conditions. With six blower sizes available, ranging from 7.5 to 50 HP, each project can be matched to the correct blower and air delivery system, providing consistent reliability across all operating scenarios.
Applications for Diverse Manufacturing Environments
Sonic’s industrial hot air blower technology supports a wide range of applications requiring controlled airflow and moderate-temperature drying. The heater-less system is especially valuable where manufacturers need warm air delivered at high velocity without the energy cost or safety risks associated with traditional processing dryers.
Metal Fabrication & Finishing
Parts emerging from washing, machining, or pretreatment benefit from rapid, consistent moisture removal prior to coating or assembly. Reliable warm airflow reduces cycle time, limits corrosion risk, and supports a smoother transition to downstream finishing operations.
Automotive
Complex automotive components such as housings, castings, and assemblies dry more efficiently when exposed to controlled warm air after aqueous cleaning. This method improves process reliability, protects sensitive materials, and maintains the throughput required for continuous production lines.
Web Processing
Precise warm air delivery helps coatings, adhesives, and substrates dry uniformly without exposing films, foils, or papers to excessive heat. By stabilizing moisture and temperature conditions across the web, manufacturers achieve higher product quality and reduce scrap from uneven curing.
Beverage Packaging Lines
Bottles, cans, and other beverage containers dry quickly as targeted warm airflow eliminates water left behind from rinsing, filling, or pasteurization stages. Consistent moisture removal improves label adhesion, coding accuracy, and seal integrity while minimizing interruptions on high-speed lines.
Drying Reinvented with Our Innovative Heater-Less Hot Air Blower
- DRY-IN-PLACE® Tank/Blender/Piping Drying Systems
- Web coating dryer with Sonic XE Air Knives or Nozzles

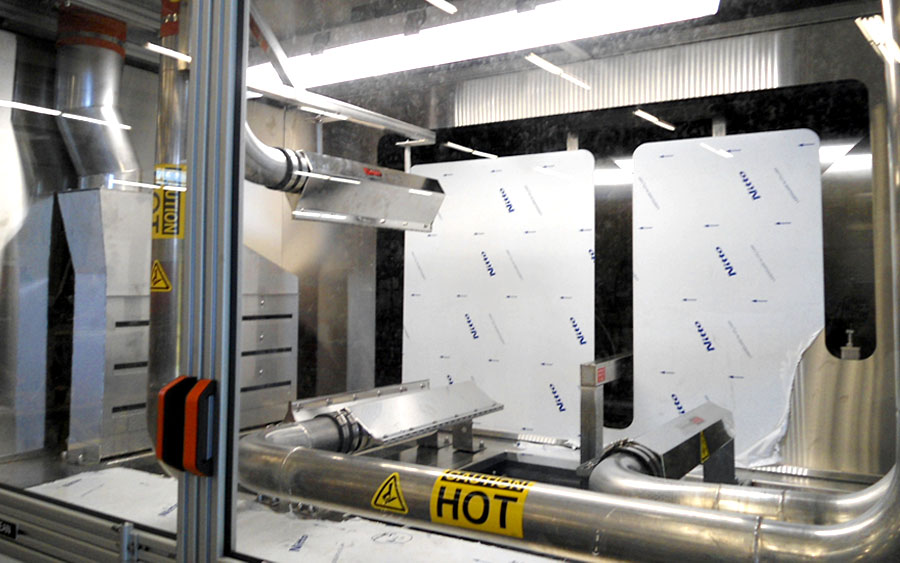

- Hot air tunnel dryer for coating drying on various product sizes, shapes, and conveyor speeds
- Hot air knives for drying cold-filled bottles prior to labeling
- Hot air knives for drying water-based coatings, paints, and inks on continuous conveyor lines
- Hot air batch drying with forced convection for parts and bulk materials
- Patented technology exclusive to Sonic Air Systems
- Six blower models, from 7.5 to 50 HP (7.5 to 37 kW), for maximum efficiency
- Up to 75% energy reduction by eliminating electric, gas, and steam heaters
- Increased safety by avoiding heater elements or fuels
- Precise high-velocity air delivery with Sonic Hot Air XE Air Knives
- Elimination of high kW 3-phase heater control panels
- Customized engineering for each application
How to Select the Right Industrial Diverter Valve
Determining the best valve for your system depends on balancing air volume, pressure, and material characteristics. When these factors align, you achieve smoother performance, higher efficiency, and long-term reliability. The ideal configuration not only maintains consistent airflow and minimizes pressure loss but also enhances energy efficiency across continuous production cycles.
Common Types of Diverter Valves
- Flap Type Diverter: Simple, cost-effective valve ideal for low- to medium-pressure systems handling powders, pellets, or airflows requiring gentle redirection.
- Plug (Rotor) Diverter: Designed for continuous-duty applications, offering smooth switching between lines with minimal leakage.
Slide or Slideflex Diverter: Provides fast, tight-sealing transitions for high-pressure or high-temperature processes where precision airflow management is essential.
Key Technical Considerations
When specifying an industrial air diverter valve, consider the following engineering factors to ensure long-term reliability:
- Material Compatibility: Choose materials suited to your process—aluminum for lightweight efficiency, stainless steel for hygienic or corrosive environments, or coated alloys for chemical resistance.
- Actuation & Automation: Sonic offers manual, pneumatic, or automated actuation to integrate with PLC or sensor-driven systems for instant airflow control.
Sealing & Maintenance: Valves are designed with precision-fit components and replaceable seals to maintain efficiency and reduce downtime during maintenance intervals.
Specification Sheets
Related Products
Centrifugal Air Blowers and Models
Centrifugal Air Blowers and Models
Gas Duty Blowers and Vacuums
Gas Duty Blowers and Vacuums
Hydraulic Driven Blowers and Vacuums
Hydraulic Driven Blowers and Vacuums
Portable Air Blower Systems
Portable Air Blower Systems
Dry-In-Place Tank Dryer (Patented)
Dry-In-Place Tank Dryer (Patented)
Industrial Hot Air Blower (Patented)
Industrial Hot Air Blower (Patented)
Cold Air Blower
Cold Air Blower
Frequently Asked Questions
Yes. Sonic butterfly valves can operate in conjunction with a VFD for blower speed control; however, they can also function as the sole airflow control device. As a low-cost alternative to a VFD, the butterfly valve allows operators to manually fine-tune air velocity and pressure, setting the optimum airflow level during the initial system setup without relying on expensive electronic controls.
The Sonic Y-Verter™ is a mechanical alternative to Variable Frequency Drive motor controllers traditionally used in blower and air knife systems. It allows rapid, reliable airflow redirection between system branches without changing motor speed, reducing complexity and maintenance requirements compared to VFD-based systems.
A Y-Verter™ is particularly effective when using standard 3,600 RPM, 60 Hz motors where air control needs can be met through mechanical redirection rather than motor speed modulation. While certain high-speed blower motors (up to 20,000 RPM) may require VFDs with output frequencies up to 330 Hz, many air knife applications can achieve equal or better airflow management with the simpler, more durable Y-Verter™ system.
Yes. They can be integrated with most industrial blowers or pneumatic systems, and custom configurations are available for unique operating conditions.
Frequently Asked Questions
The blower delivers warm air between 125°F and 275°F without any external heater. Actual temperature output depends on airflow, back pressure, and model selection.
This system is designed for applications needing moderate-temperature drying. Processes requiring 300°F–600°F or higher would still require a dedicated heat source, but most industrial drying or curing steps do not operate at those temperatures.

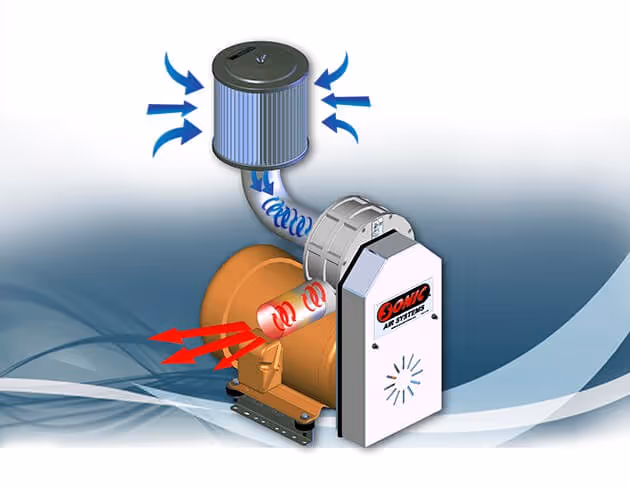

The blower uses the heat naturally generated by the motor and impeller. Eliminating external heaters dramatically reduces electrical consumption, improves efficiency, and minimizes maintenance.
Yes. Sonic’s blowers are engineered for continuous operation with industrial-grade bearings, corrosion-resistant materials, and robust construction.
Model selection depends on required airflow (CFM), pressure (PSIG), moisture load, temperature rise, and production line configuration. Sonic’s engineering team provides application-specific sizing and recommendations.
