Improve Powder Coating PERFORMANCE with a Drying System Built for Your Line
Clean, dry, and prep parts before coating without compressed air.
Powder coating lines demand clean, dry parts surfaces because even small amounts of moisture, dust, or process residue can show up as defects (aka holidays) in the final finish. Sonic Air Systems designs blower-powered air knife and nozzle solutions that remove water and debris after washing or pretreatment and before coating applications, helping finishing lines run more consistently while lowering operating costs. Built around high-efficiency centrifugal blowers, our systems deliver stable, high-velocity airflow for non-contact drying and blow-off—engineered to match your part geometry, line speed, and booth requirements.
Strategic Points for Industrial Air Drying and Blow-Off in the Powder Coating Process
Powder coating lines typically follow a sequence of steps, including washing, pretreatment, rinsing, drying, powder application, and curing. Sonic systems are most often installed at key transition points where surface condition directly impacts coating quality.
- After wash and rinse stations, to remove water droplets and carryover before parts enter the booth.
- After pretreatment and sealing steps, to reduce residue and help prevent contamination from transferring downstream.
- Before powder application, to blow off dust, particles, and debris for improved adhesion and a cleaner finished appearance.
- Before pre-coat ovens when needed, to improve consistency by reducing surface moisture which allows the hidden moisture to be flash dried more completely to achieve the required and parts pre-heating temperature using with less total energy.
Every finishing line has its own constraints, from rack systems and conveyors to parts baskets, hooks, hangers, and varying part orientation. Sonic engineers each solution to match your layout, part geometry, and throughput requirements.
Powder Coating Quality and Throughput is Directly Affected by Drying System Effectiveness
Powder coating results are often decided before the booth. The most common issues show up in the handoff between wash or pretreatment and application, when industrial air drying in powder coating must deliver parts that are clean, dry, and consistent from piece to piece.
Hidden moisture that causes defects
Even when parts look dry, water can remain trapped in corners, seams, threads, channels, and recessed features. This is common on complex stampings, brackets, tubing assemblies, and fabricated parts, and can lead to pinholes and blemishes in the finish, uneven texture or appearance, and inconsistent film build in tight areas.
Dust and debris that show up in the finish
Contaminants can come from handling, conveyor wear, upstream operations, or ambient dust in the finishing environment. If debris stays on the parts, it can create visible imperfections after powder is applied, resulting in specks and blemishes in the coated surface and more rework, touch-up, and rejects. If the parts and surface debris are both charged by static electricity, the urgency to remove static and debris is even greater.
Compressed air cost and inconsistent results
Compressed air is often used for blow-off because it is readily available, but it is expensive, noisy, and difficult to standardize across stations. Variation in how it is used and fluctuations in pressure can drive uneven results, higher operating costs over time, and performance that changes by shift, station, or operator.
Production line safety can be compromised by ineffective drying & blow off
Not only is production or quality at risk without proper drying and water blow off methods and equipment, having water accumulation around the floor of the conveyor can be hazardous.
Engineered Solutions Built Around Your Line, Your Parts, and Your Quality Targets
Air knives for wide and uniform coverage

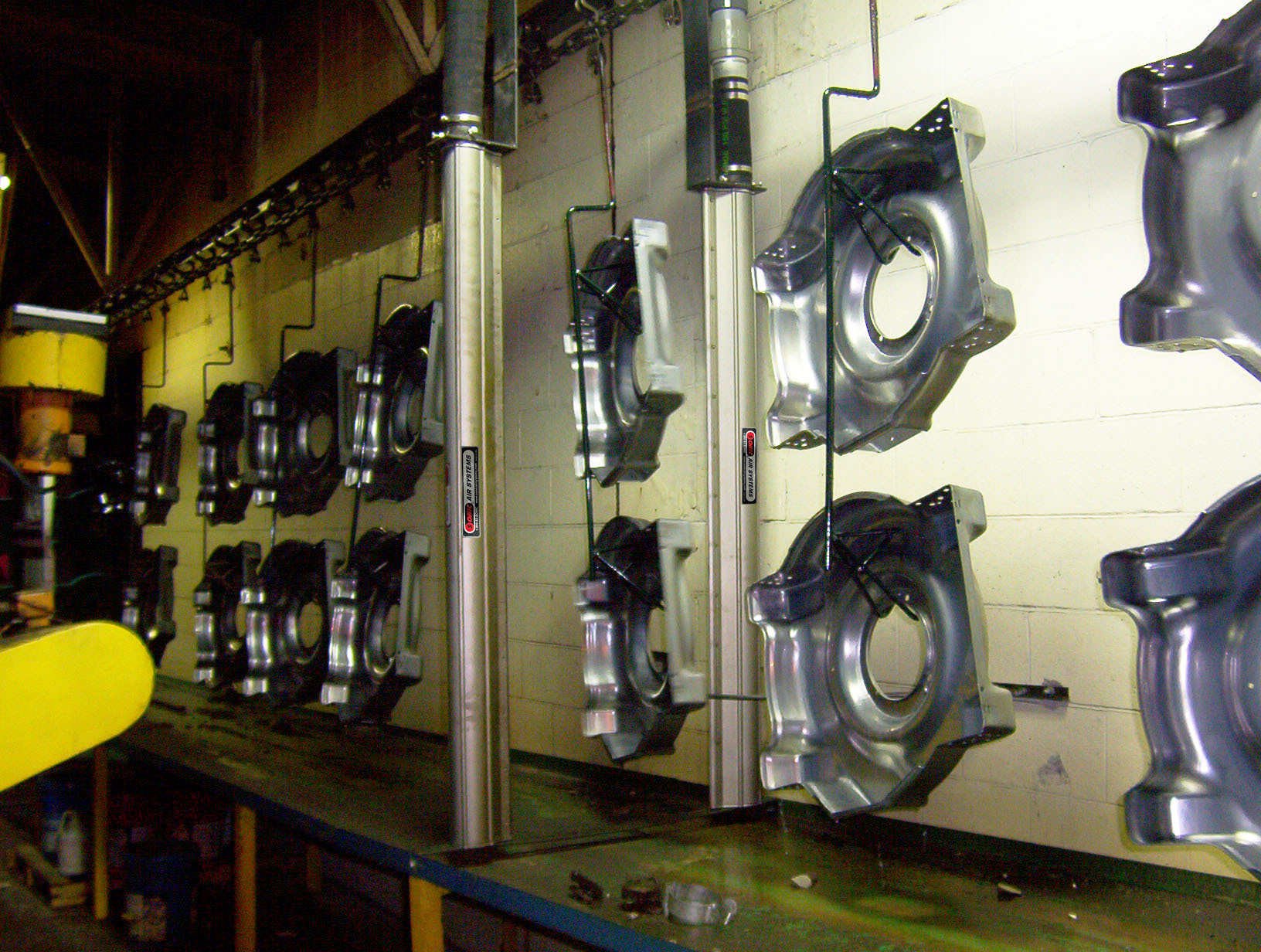

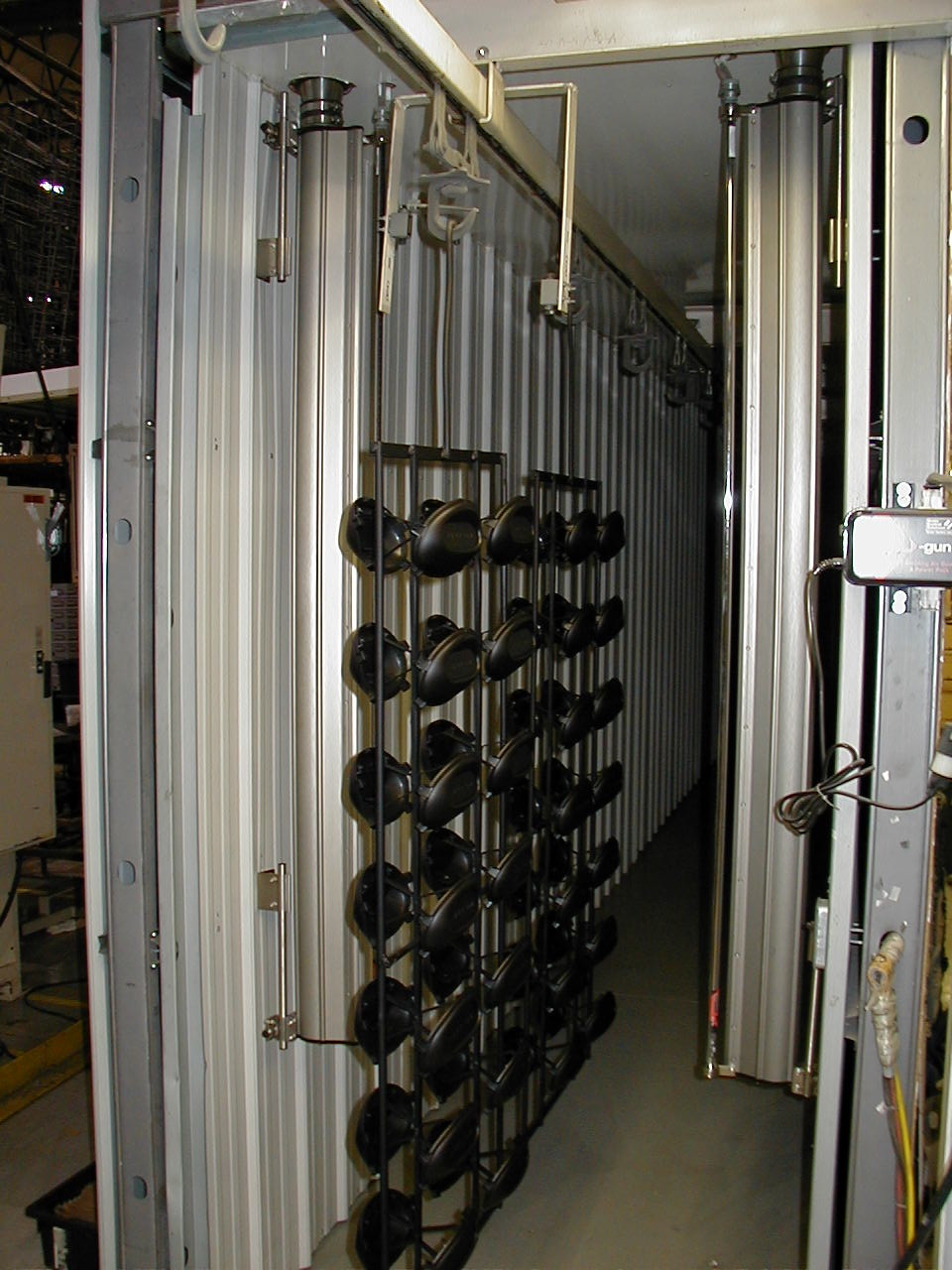

Sonic air knives deliver a continuous curtain of high-velocity air across a defined length. This is ideal for panels, extrusions, racked parts, and conveyorized assemblies where even coverage is critical. Uniform airflow helps prevent streaks and ensures that the same part sees the same drying force across its entire width.
Centrifugal blowers that replace compressed air
Sonic centrifugal blowers deliver the airflow required for industrial air drying in powder coating operations, without the high energy cost of compressed air. Blower-powered systems provide consistent output and support simple control strategies for different part sizes and line speeds.
Nozzle manifolds for complex geometry

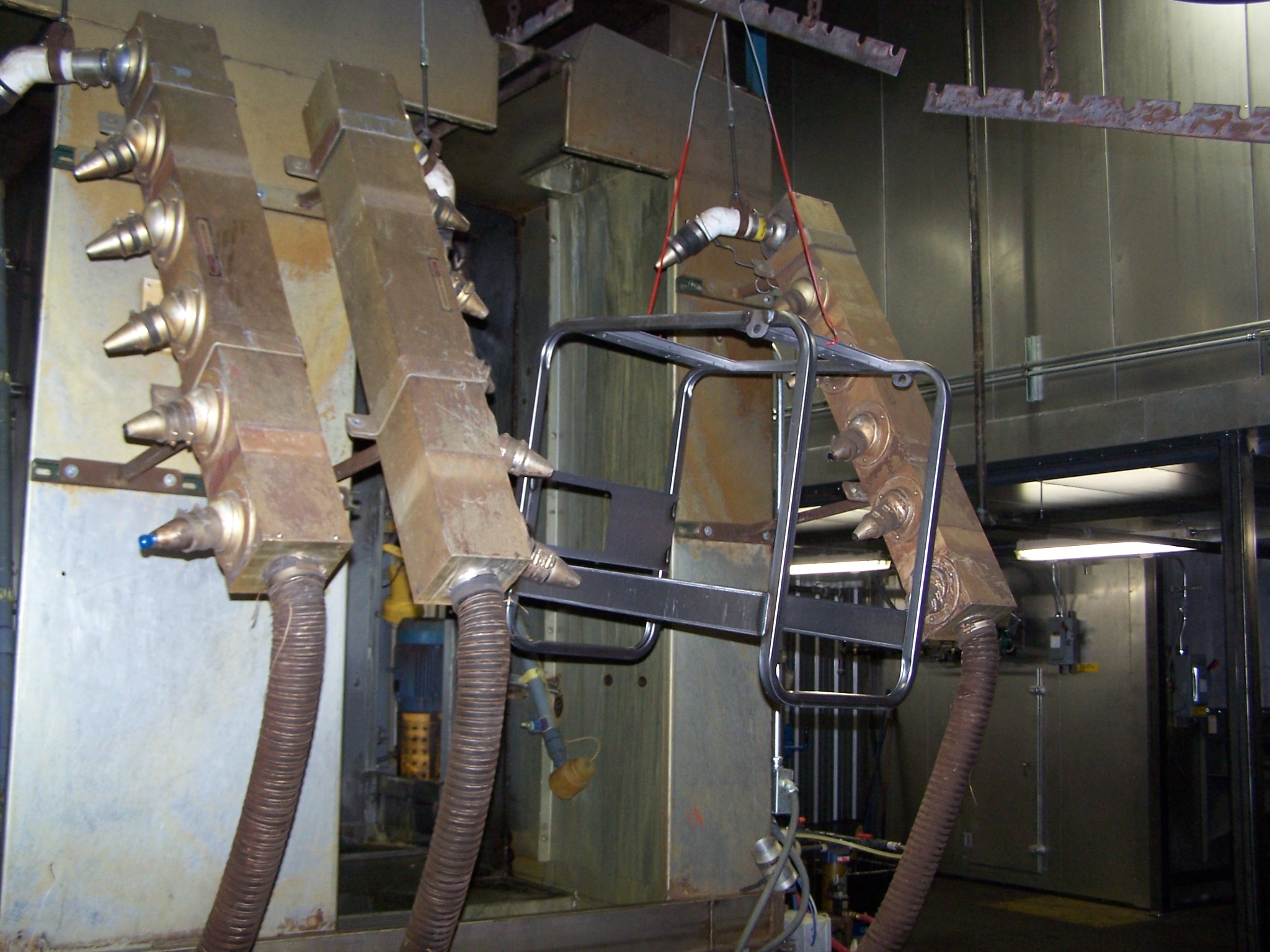

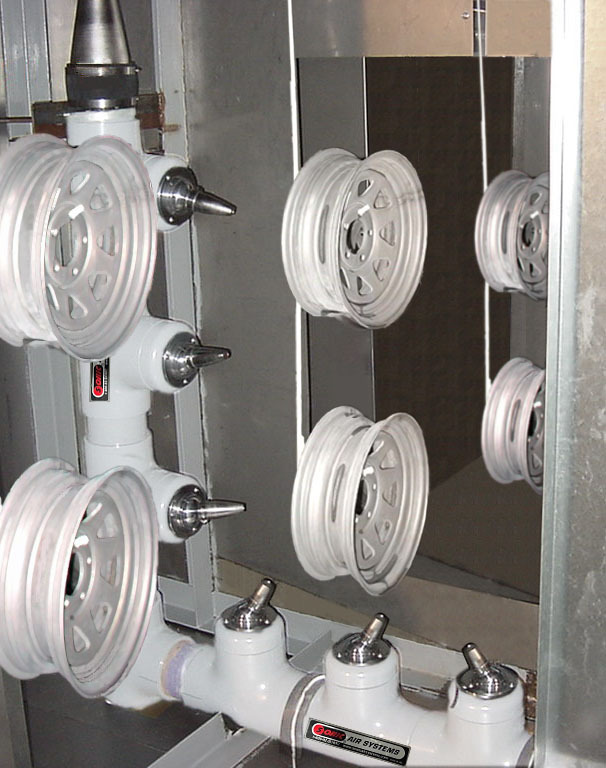

When parts include holes, channels, deep pockets, or tight corners, air nozzle manifolds provide focused airflow aimed where water hides. Manifolds can be configured for part families, with adjustable nozzles and repeatable mounting so performance does not depend on operator technique.
Integration of Blow-Off System Into Tunnels
Sonic offers design assistance to integrate our systems with yours to keep airflow controlled, improve housekeeping, and reduce the chance of recontamination. The goal is to move moisture and debris away from the part and away from critical coating zones.
The Use of Static Neutralizing Air Knives Before The Coating Booth
Parts having particles stuck to the surface prior to coating require Sonic air ionizing anti-static blow off which Sonic has been supplying for decades. With a properly sized static neutralizing Sonic air knife system, which can include the airborne dust collector system as well, fugitive dust causing coating defects are a thing of the past.
Results you can measure on the line
- Improve first pass yield by reducing common defects such as pinholes, craters, and visible particles.
- Deliver a more uniform, repeatable finish on critical appearance surfaces and along edges and features where moisture hides.
- Cut rework and unplanned downtime by keeping parts moving through the process with fewer quality-related stops.
- Reduce operating costs by replacing high-volume compressed air blow-off with engineered blower-powered airflow.
- Improve the efficiency and effectiveness of the final dry/preheat oven by removing most or all visible surface moisture from parts.
- Create a safer, more comfortable work area with quieter performance and fewer uncontrolled open-air blasts.
Get a blower-powered alternative to compressed air blow-off with Sonic Air.
Tell us about your finishing line, part geometry, and where you need drying or blow-off support. Our team will recommend a powder coating drying system solution using air knives or nozzle configurations built for your process, so you can reduce defects, improve consistency, and run a more efficient operation.
