Precision-Engineered Air Nozzle Manifold Systems for Targeted Airflow Control
In high-volume production lines, incomplete drying or debris removal can lead to costly rework, contamination, or product rejection. For manufacturers handling components with irregular shapes or intricate surfaces, achieving consistent airflow coverage is a persistent challenge.

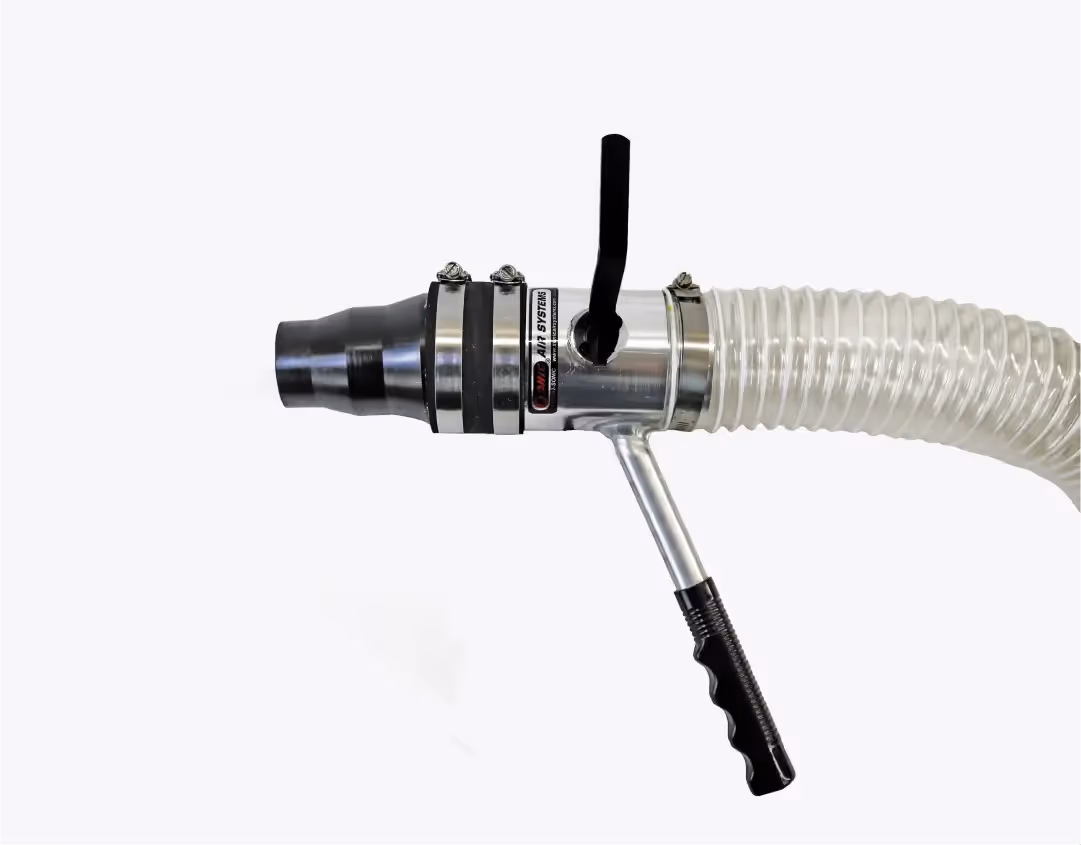

Sonic Air Systems’ air nozzle manifolds deliver the precision and power engineers need to solve these problems. Each manifold is custom-built to provide uniform, high-velocity air across multiple points, ensuring complete drying, cooling, or cleaning even in hard-to-reach areas. For applications needing a single, focused jet of air, we also offer precision air nozzles built to the same high standards.
Features and Benefits of Our Air Nozzle Manifolds
Behind every spray nozzle manifold is a balance of precision airflow design and mechanical durability. Each component is engineered not only to optimize drying performance but also to simplify system integration, extend equipment life, and lower total operating costs.
- Precise Airflow Management: Every Sonic manifold nozzle is designed using computational airflow analysis and precision-machined components to deliver balanced pressure and velocity across each nozzle outlet. This results in consistent drying and debris removal even on parts with blind holes, deep recesses, or irregular surfaces—critical for industries where cleanliness and precision are non-negotiable.
- Durable and Corrosion-Resistant Construction: Our manifolds are available in anodized aluminum, stainless steel, or custom materials to withstand harsh industrial or washdown environments. The rugged construction promotes long-term reliability and minimal maintenance, even under high humidity or chemical exposure. Engineers can depend on Sonic manifolds for continuous operation in demanding production conditions.
- Modular Design for Easy Integration: The modular manifold nozzle design allows fast installation and simplified line adjustments. Mounting brackets and inlet configurations are standardized for quick connection to Sonic centrifugal blowers or existing air delivery systems. The result: reduced downtime and maximum flexibility when integrating into conveyors, dryers, or packaging lines.
- Versatile Configurations and Sizes: Sonic offers custom spray nozzle manifold assemblies to fit virtually any product dimension or airflow requirement. Choose from various lengths, nozzle counts, and spacing options to tailor the airflow pattern precisely to your application. Each system is engineered for optimal airflow efficiency and energy savings.
- Engineered for Energy Efficiency: Paired with Sonic’s high-performance blowers, each air nozzle manifold replaces costly compressed air systems, reducing energy consumption by up to 75% while maintaining or exceeding airflow velocity. This translates to significant operating-cost reductions and rapid ROI without compromising performance.
When to Choose an Air Nozzle Manifold Over an Air Knife
While both air knives and nozzle manifolds deliver high-velocity airflow, the ideal choice depends on the geometry of your product and the desired airflow pattern:
- Choose an air nozzle manifold for products with complex shapes, deep cavities, or narrow recesses that require precise, directional airflow at multiple points.
- Choose an air knife for wide, flat, or continuous surfaces where a uniform curtain of air provides faster coverage and drying.
How Sonic Spray Nozzle Manifolds Power Manufacturing Efficiency Across Sectors
Technical Specifications and Options
Our Case Studies
Frequently Asked Questions
Sonic manifolds use blower-driven air, not compressed air, to achieve high-velocity airflow with far lower energy costs. The precision-machined nozzle outlets are optimized for laminar flow and uniform distribution along the manifold length.
Yes. Each system can be configured to fit your conveyor width, product shape, and required airflow pattern. Our engineering team designs every manifold to integrate seamlessly with your existing equipment.
Routine inspection of nozzles and filters ensures peak efficiency. Manifolds are easy to disassemble for cleaning, and corrosion-resistant materials minimize long-term maintenance.

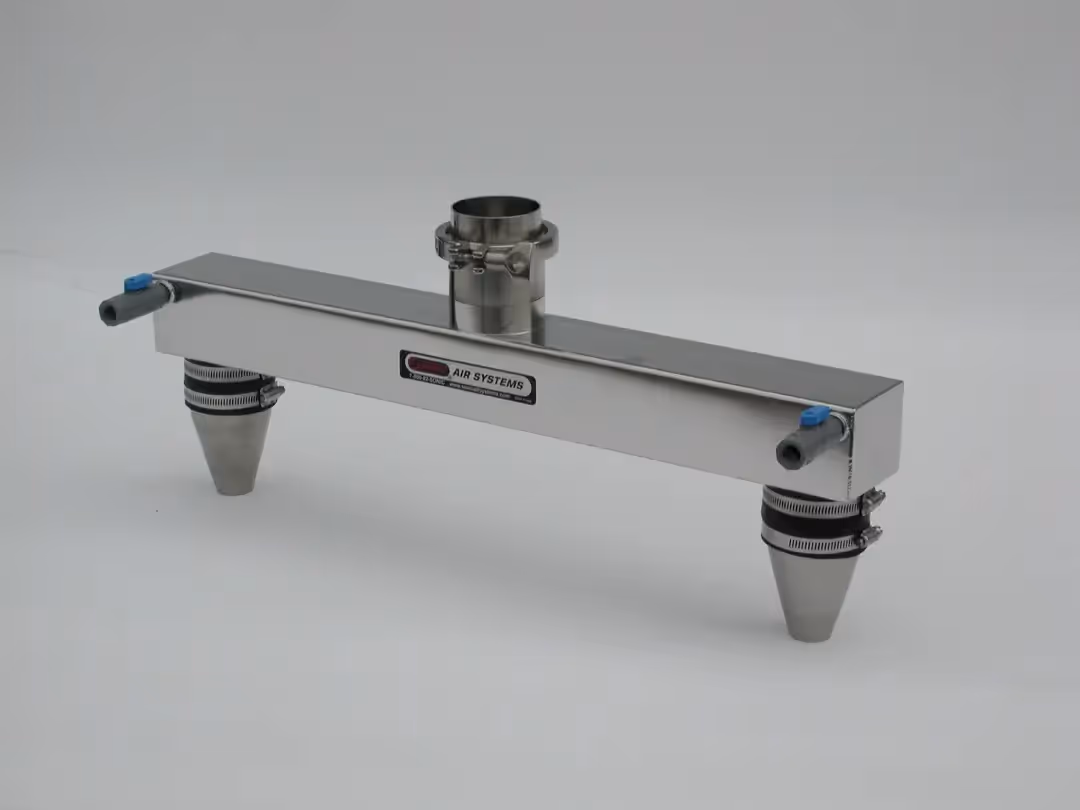

Absolutely. Sonic offers stainless-steel, washdown-rated manifold nozzles with hygienic fittings and sealed joints to meet food, beverage, and pharmaceutical standards.
